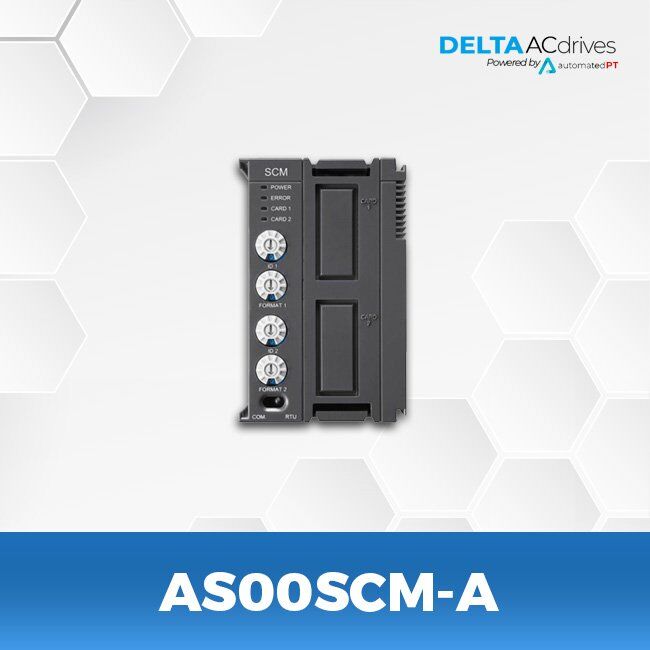

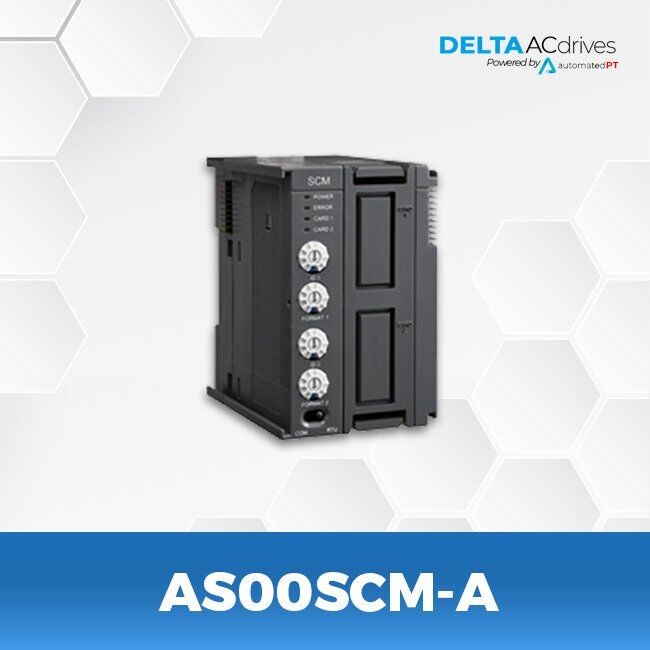

Delta AS00SCM-A AS Series PLC Accessories

  • AS Series Compatible
  • Serial Communication Module
  • Applicable to Communication Cards
  • Supporting MODBUS Protocols

PRODUCT SPECIFICATIONS

Model Name AS00SCM-A
Compatible Series AS Series
Classification Serial Communication Module
Type Basic
Function Basement
Software SCMSoft, CANopen Builder, EIP Builder
Communication Port RS-232C, RS-422, RS-485, CANopen, Ethernet, PROFINET
Power Consumption 0.6 W
IP Rating IP20

FILES

Catalog Delta AS Series Catalog

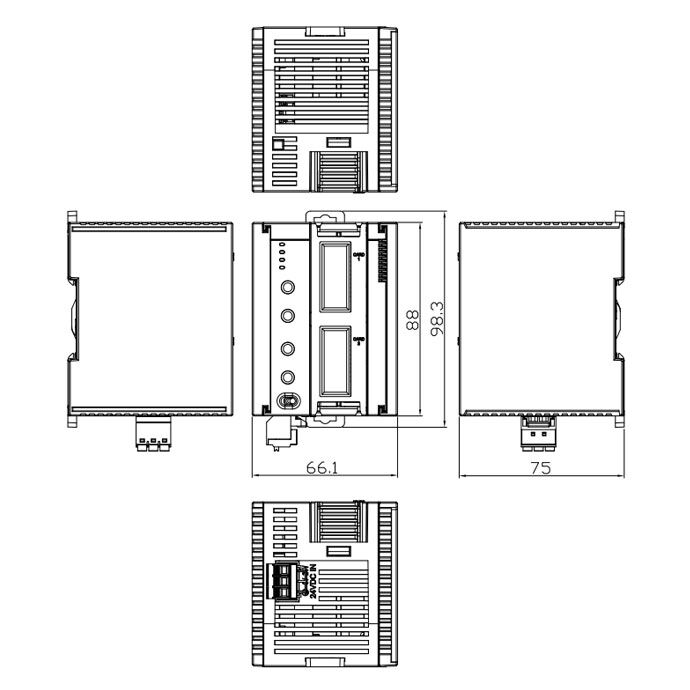

Dimensions Delta AS00SCM-A Dimensions
Instruction Sheet Delta AS00SCM-A Instruction Sheet
2D CAD Delta AS00SCM-A 2D CAD
3D CAD Delta AS00SCM-A 3D CAD  |  (View 3D File)
UL Certificate Delta AS00SCM-A UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
