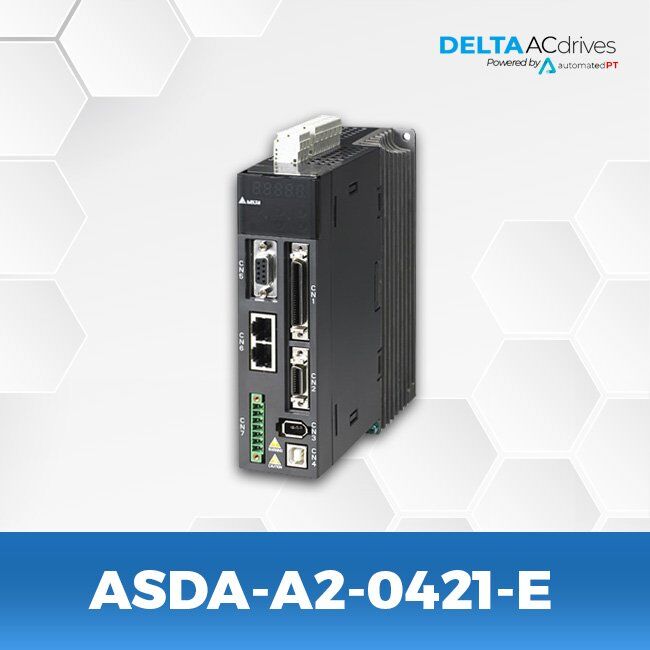

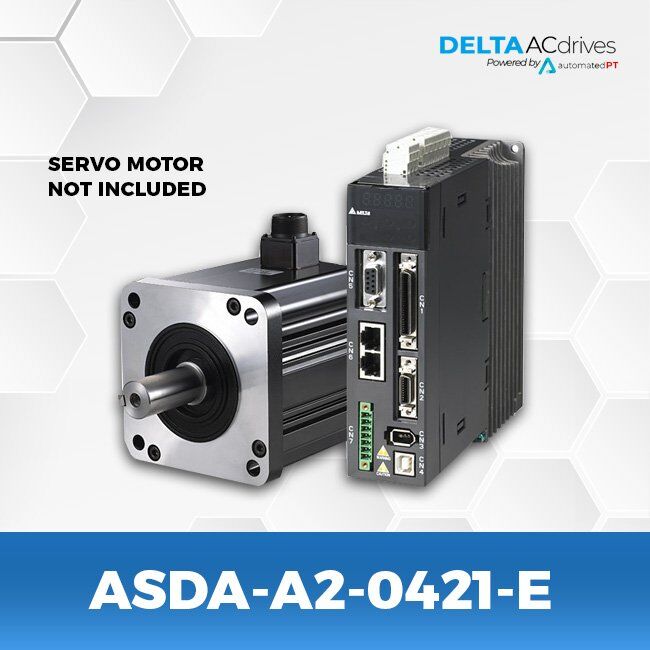

Delta ASD-A2-0421-E A2 Servo Drive

$856.80

  • Series: A2 Servo Drive
  • 400 Watts
  • 220 Volts Input
  • 1/3 Phase (PH)
  • 2.6 Arms Output Current

SPECIFICATIONS

Model Name ASD-A2-0421-E A2
Series A2 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 0.4 KW
Continuous Output Current 2.6 Arms
Instant Max Output Current 7.80 Arms
Model Type Extension Port for Digital Input, EtherCAT, PR Parameters

CATALOG & MANUALS

Catalog Delta ASDA A2 Servo Drive Catalog
Users Manual Delta ASDA A2 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

To meet the demanding requirements of motion control applications in industrial automation and satisfy the needs of high-precision positioning control requested by machine designers and system integrators, Delta launched the high-performance motion control ASDA-A2 series servo motors and servo drives in 2009.

Features Include

High Precision Control
ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.

Superlative Vibration Suppression
Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.

Flexible Internal Position Mode (Pr Mode)
ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.

Unique Built-in Electronic Cam (E-CAM)
Up to 720 E-CAM points.
Smooth interpolation between points can be completed automatically to yield a flexible programming.
