SPECIFICATIONS

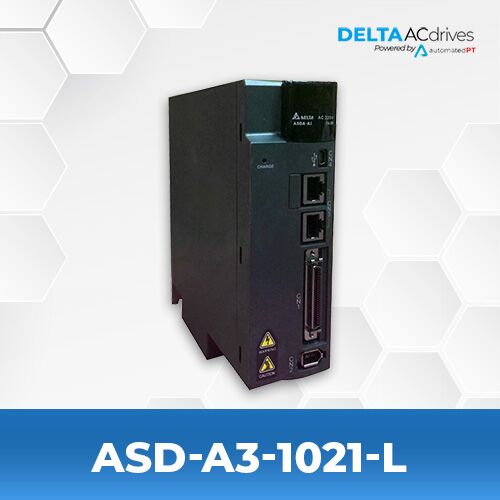

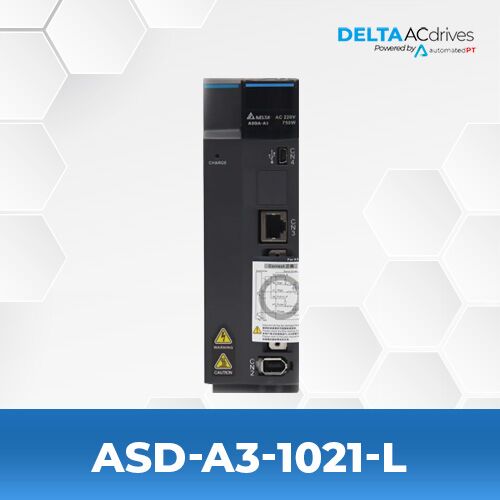

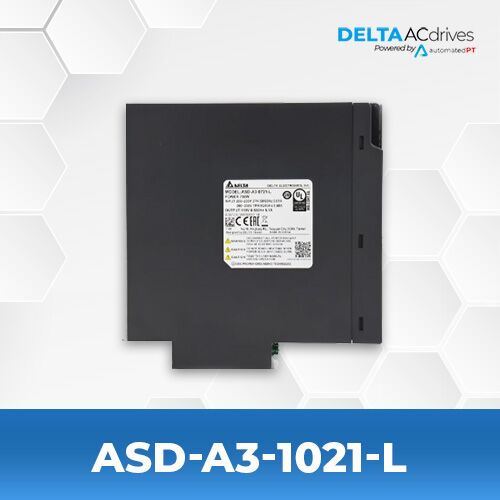

Model Name | ASD-A3-1021-L |
Series | A3 Servo Drive |
Phase | 1/3 PH |
Voltage | 220 VAC |
Rated Output Power | 1 kW |
Continuous Output Current (Arms) | 7.3 Arms |
Instantaneous Max Output Current | 24.75 Arms |
Model Type | PT Mode Pulse Train, PR Mode, RS-485, Full-Closed Loop Control, Analog Voltage Control |
CATALOG & MANUALS
Catalog | Delta ASDA A3 Servo Drive Catalog | |
Users Manual | Delta ASDA A3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-A3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-A2 seriew with finer grain control and better accuracy. The A3 drives are compatible with both A3 and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, system diagnosis
- DC Bus Sharing
- Smaller drive and motors compared to A2
DELTA ASD-A3-1021-L SERVO DRIVE COMPATIBLE MOTORS
Model Number | Rated Output Power | Rated Torque |
---|---|---|
ECMC-CW1010CS | 1 kW | 3.18 (N-m) |
ECMC-CW1010DS | 1 kW | 3.18 (N-m) |
ECMC-CW1010PS | 1 kW | 3.18 (N-m) |
ECMC-CW1010QS | 1 kW | 3.18 (N-m) |
ECMC-CW1010RS | 1 kW | 3.18 (N-m) |
ECMC-CW1010SS | 1 kW | 3.18 (N-m) |
ECMC-EW1310CS | 1 kW | 4.77 (N-m) |
ECMC-EW1310DS | 1 kW | 4.77 (N-m) |
ECMC-EW1310PS | 1 kW | 4.77 (N-m) |
ECMC-EW1310QS | 1 kW | 4.77 (N-m) |
ECMC-EW1310RS | 1 kW | 4.77 (N-m) |
ECMC-EW1310SS | 1 kW | 4.77 (N-m) |
ECMC-FW1308CS | 0.85 kW | 5.41 (N-m) |
ECMC-FW1308DS | 0.85 kW | 5.41 (N-m) |
ECMC-FW1308PS | 0.85 kW | 5.41 (N-m) |
ECMC-FW1308QS | 0.85 kW | 5.41 (N-m) |
ECMC-FW1308RS | 0.85 kW | 5.41 (N-m) |
ECMC-FW1308SS | 0.85 kW | 5.41 (N-m) |
Model Number | Rated Output Power | Rated Torque |
