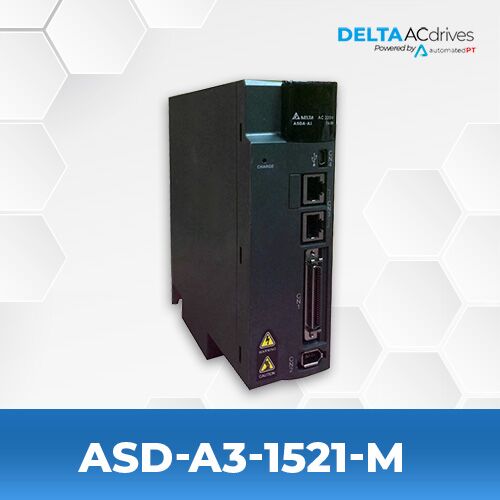

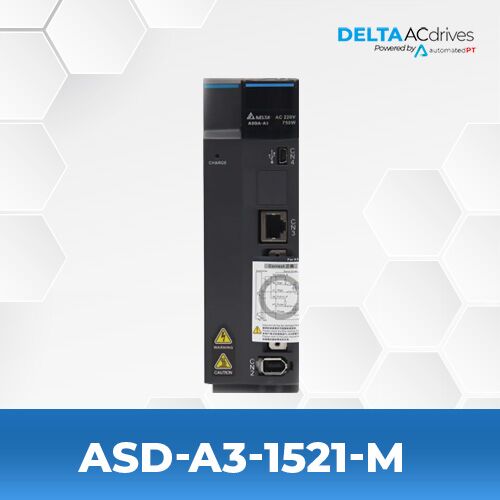

Delta ASD-A3-1521-M Servo Drive

  • Series: A3 Servo Drive
  • 1.5 Kilowatt
  • 220 Volts Input
  • 1/3 Phase (PH)
  • 8.3 Arms Output Current


SPECIFICATIONS

Model Name ASD-A3-1521-M
Series A3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 1.5 kW
Continuous Output Current (Arms) 8.3 Arms
Instantaneous Max Output Current 35.36 Arms
Model Type PT Mode Pulse Train, PR Mode, RS-485, CANopen, Full-Closed Loop Control, Analog Voltage Control, E-Cam, STO

CATALOG & MANUALS

Catalog Delta ASDA A3 Servo Drive Catalog
Users Manual Delta ASDA A3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-A3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-A2 seriew with finer grain control and better accuracy. The A3 drives are compatible with both A3 and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, system diagnosis
  • STO (Safe Torque Off)
  • DC Bus Sharing
  • Smaller drive and motors compared to A2

Model Number Rated Output Power Rated Torque
ECMC-EW1315CS 1.5 kW 7.16 (N-m)
ECMC-EW1315DS 1.5 kW 7.16 (N-m)
ECMC-EW1315PS 1.5 kW 7.16 (N-m)
ECMC-EW1315QS 1.5 kW 7.16 (N-m)
ECMC-EW1315RS 1.5 kW 7.16 (N-m)
ECMC-EW1315SS 1.5 kW 7.16 (N-m)
