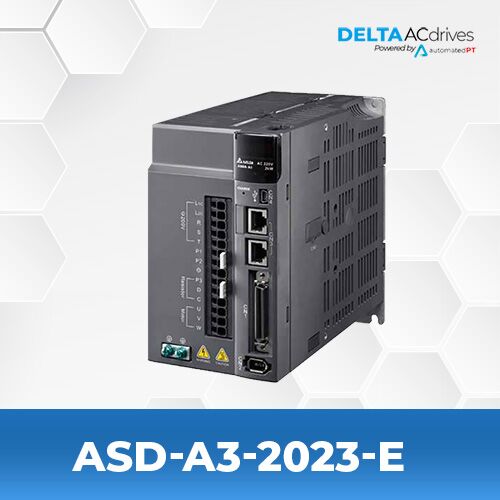

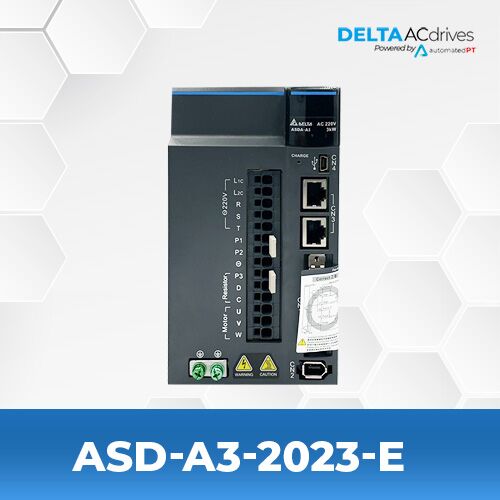

Delta ASD-A3-2023-E Servo Drive
- Series: A3 Servo Drive
- 2 Kilowatt
- 400 Volts Input
- 3 Phase (PH)
- 13.4 Arms Output Current
SPECIFICATIONS
| Model Name | ASD-A3-2023-E |
| Series | A3 Servo Drive |
| Phase | 3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 2 kW |
| Continuous Output Current (Arms) | 13.4 Arms |
| Instantaneous Max Output Current | 53.03 Arms |
| Model Type | PR Mode, EtherCAT, Full-Closed Loop Control, E-Cam, STO |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA A3 Servo Drive Catalog | |
| Users Manual | Delta ASDA A3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-A3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-A2 seriew with finer grain control and better accuracy. The A3 drives are compatible with both A3 and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, system diagnosis
- STO (Safe Torque Off)
- DC Bus Sharing
- Smaller drive and motors compared to A2
DELTA ASD-A3-2023-E SERVO DRIVE COMPATIBLE MOTORS
| Model Number | Rated Output Power | Rated Torque |
|---|---|---|
| ECMC-EW1320CS | 2 kW | 9.55 (N-m) |
| ECMC-EW1320DS | 2 kW | 9.55 (N-m) |
| ECMC-EW1320PS | 2 kW | 9.55 (N-m) |
| ECMC-EW1320QS | 2 kW | 9.55 (N-m) |
| ECMC-EW1320RS | 2 kW | 9.55 (N-m) |
| ECMC-EW1320SS | 2 kW | 9.55 (N-m) |
| ECMC-EW1820CS | 2 kW | 9.55 (N-m) |
| ECMC-EW1820DS | 2 kW | 9.55 (N-m) |
| ECMC-EW1820PS | 2 kW | 9.55 (N-m) |
| ECMC-EW1820QS | 2 kW | 9.55 (N-m) |
| ECMC-EW1820RS | 2 kW | 9.55 (N-m) |
| ECMC-EW1820SS | 2 kW | 9.55 (N-m) |
| ECMC-FW1313CS | 1.3 kW | 8.34 (N-m) |
| ECMC-FW1313DS | 1.3 kW | 8.34 (N-m) |
| ECMC-FW1313PS | 1.3 kW | 8.34 (N-m) |
| ECMC-FW1313QS | 1.3 kW | 8.34 (N-m) |
| ECMC-FW1313RS | 1.3 kW | 8.34 (N-m) |
| ECMC-FW1313SS | 1.3 kW | 8.34 (N-m) |
| ECMC-FW1318CS | 1.8 kW | 11.48 (N-m) |
| ECMC-FW1318DS | 1.8 kW | 11.48 (N-m) |
| ECMC-FW1318PS | 1.8 kW | 11.48 (N-m) |
| ECMC-FW1318QS | 1.8 kW | 11.48 (N-m) |
| ECMC-FW1318RS | 1.8 kW | 11.48 (N-m) |
| ECMC-FW1318SS | 1.8 kW | 11.48 (N-m) |
| Model Number | Rated Output Power | Rated Torque |
