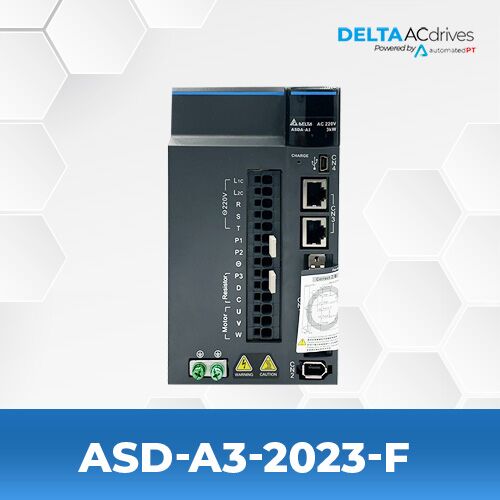

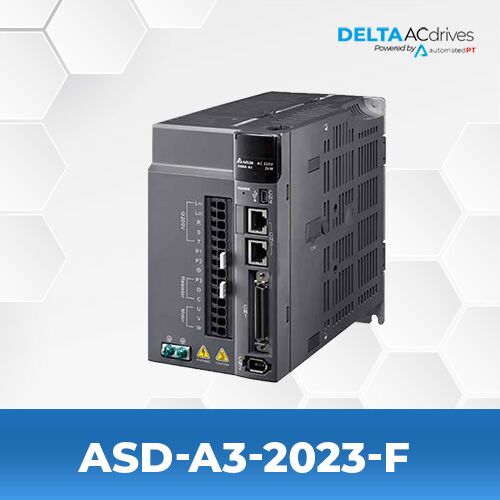

Delta ASD-A3-2023-F Servo Drive

  • Series: A3 Servo Drive
  • 2 Kilowatt
  • 400 Volts Input
  • 3 Phase (PH)
  • 13.4 Arms Output Current


SPECIFICATIONS

Model Name ASD-A3-2023-F
Series A3 Servo Drive
Phase 3 PH
Voltage 220 VAC
Rated Output Power 2 kW
Continuous Output Current (Arms) 13.4 Arms
Instantaneous Max Output Current 53.03 Arms
Model Type PR Mode, DMCNET, Full Closed Loop Control, E-CAM

CATALOG & MANUALS

Catalog Delta ASDA A3 Servo Drive Catalog
Users Manual Delta ASDA A3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-A3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-A2 seriew with finer grain control and better accuracy. The A3 drives are compatible with both A3 and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, system diagnosis
  • DC Bus Sharing
  • Smaller drive and motors compared to A2

DELTA ASD-A3-2023-F SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECMC-EW1320CS 2 kW 9.55 (N-m)
ECMC-EW1320DS 2 kW 9.55 (N-m)
ECMC-EW1320PS 2 kW 9.55 (N-m)
ECMC-EW1320QS 2 kW 9.55 (N-m)
ECMC-EW1320RS 2 kW 9.55 (N-m)
ECMC-EW1320SS 2 kW 9.55 (N-m)
ECMC-EW1820CS 2 kW 9.55 (N-m)
ECMC-EW1820DS 2 kW 9.55 (N-m)
ECMC-EW1820PS 2 kW 9.55 (N-m)
ECMC-EW1820QS 2 kW 9.55 (N-m)
ECMC-EW1820RS 2 kW 9.55 (N-m)
ECMC-EW1820SS 2 kW 9.55 (N-m)
ECMC-FW1313CS 1.3 kW 8.34 (N-m)
ECMC-FW1313DS 1.3 kW 8.34 (N-m)
ECMC-FW1313PS 1.3 kW 8.34 (N-m)
ECMC-FW1313QS 1.3 kW 8.34 (N-m)
ECMC-FW1313RS 1.3 kW 8.34 (N-m)
ECMC-FW1313SS 1.3 kW 8.34 (N-m)
ECMC-FW1318CS 1.8 kW 11.48 (N-m)
ECMC-FW1318DS 1.8 kW 11.48 (N-m)
ECMC-FW1318PS 1.8 kW 11.48 (N-m)
ECMC-FW1318QS 1.8 kW 11.48 (N-m)
ECMC-FW1318RS 1.8 kW 11.48 (N-m)
ECMC-FW1318SS 1.8 kW 11.48 (N-m)
Model Number Rated Output Power Rated Torque
