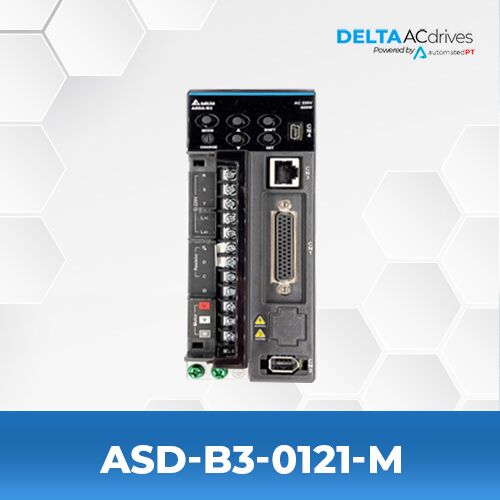

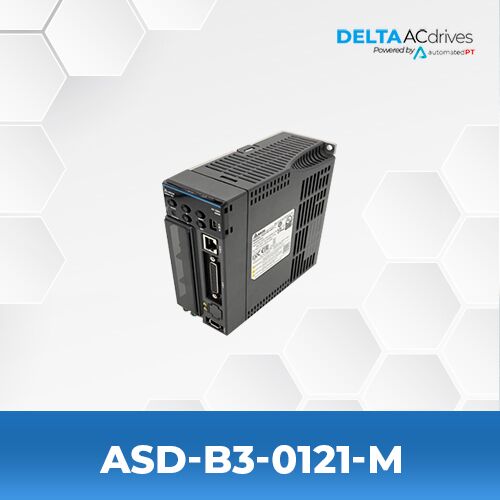

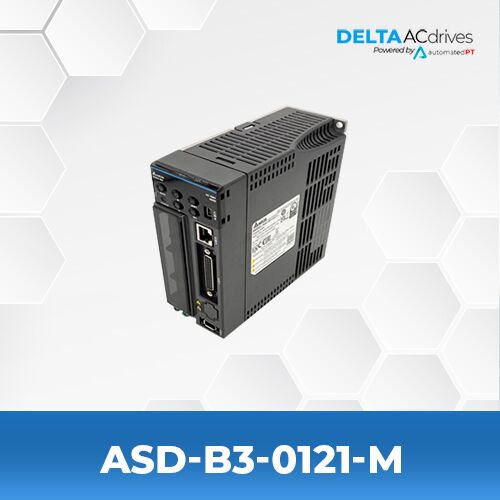

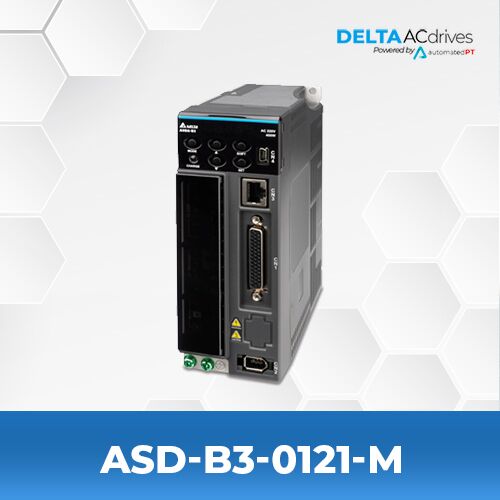

SPECIFICATIONS
Model Name | ASD-B3-0121-M |
Series | B3 Servo Drive |
Phase | 1/3 PH |
Voltage | 220 VAC |
Rated Output Power | 100 watts |
Continuous Output Current | 0.9 Arms |
Instant Max Output Current | 3.88 Arms |
Model Type | PR Mode, Analog Voltage Control, CANopen |
CATALOG & MANUALS
Catalog | Delta ASDA B3 Servo Drive Catalog | |
Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- DC Bus Sharing
- Smaller drive and motors compared to B2
DELTA ASD-B3-0121-M SERVO DRIVE COMPATIBLE MOTORS
Model Number | Rated Output Power | Rated Torque |
---|---|---|
ECM-A3L-CY040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CY040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CY040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CY040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CY040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CY040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C1040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C1040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C1040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C1040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C1040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C1040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CG040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CG040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CG040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CG040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CG040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CG040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C2040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C2040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C2040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C2040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C2040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-C2040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CA040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CA040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CA040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CA040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CA040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CA040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3L-CY0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CY0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CY0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CY0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CY0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CY0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C10401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C10401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C10401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C10401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C10401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C10401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CG0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CG0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CG0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CG0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CG0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CG0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C20401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C20401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C20401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C20401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C20401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-C20401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CA0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CA0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CA0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CA0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CA0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3L-CA0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C2040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-C2040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-C2040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-C2040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-C2040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-C2040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CA040FCS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CA040FDS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CA040FPS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CA040FQS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CA040FRS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CA040FSS1 | 0.05 kW | 0.159 (N-m) |
ECM-A3H-CY0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CY0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CY0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CY0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CY0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CY0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C10401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C10401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C10401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C10401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C10401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C10401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CG0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CG0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CG0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CG0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CG0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CG0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C20401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C20401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C20401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C20401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C20401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-C20401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CA0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CA0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CA0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CA0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CA0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-A3H-CA0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401RJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401CJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401DJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401PJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401QJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CA0401SJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401RJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401CJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401DJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401PJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401QJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-C20401SJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401RJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401CJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401DJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401PJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401QJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CP0401SJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401RS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401RJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401CS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401DS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401PS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401QS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401CJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401DJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401PJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401QJ1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401SS1 | 0.1 kW | 0.32 (N-m) |
ECM-B3L-CM0401SJ1 | 0.1 kW | 0.32 (N-m) |
