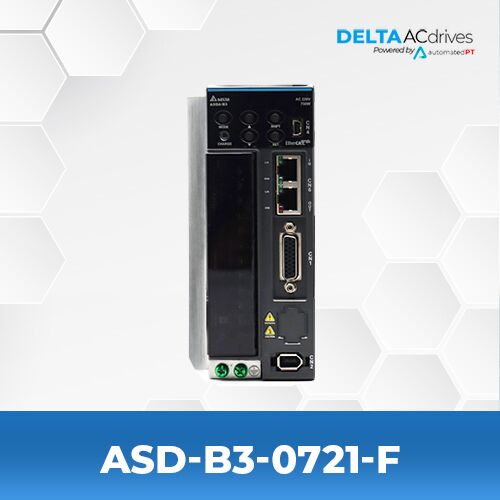

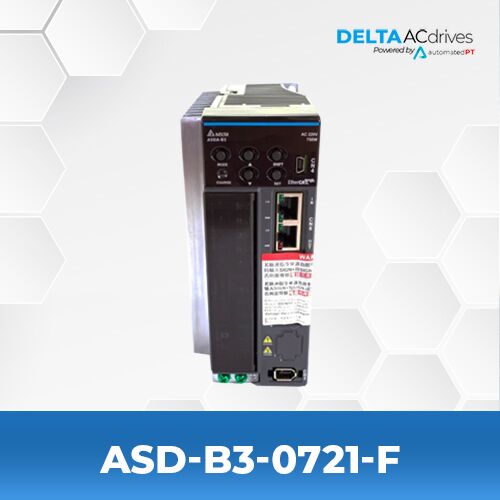

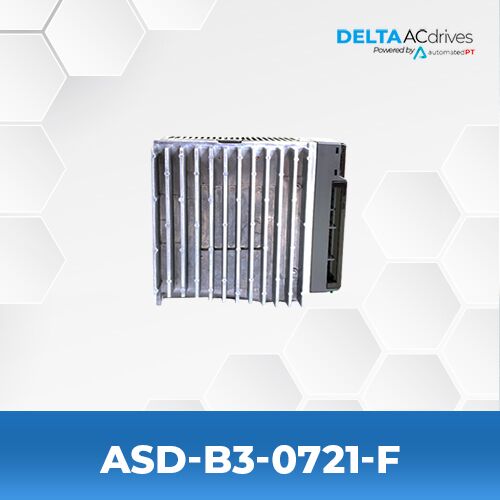

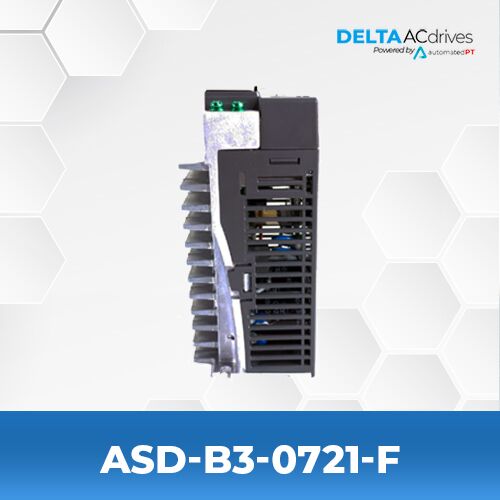

SPECIFICATIONS
Model Name | ASD-B3-0721-F |
Series | B3 Servo Drive |
Phase | 1/3 PH |
Voltage | 220 VAC |
Rated Output Power | 750 watts |
Continuous Output Current | 5.1 Arms |
Instant Max Output Current | 16.4 Arms |
Model Type | PR Mode, Analog Voltage Control, DMCNET |
CATALOG & MANUALS
Catalog | Delta ASDA B3 Servo Drive Catalog | |
Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- DC Bus Sharing
- Smaller drive and motors compared to B2
DELTA ASD-B3-0721-F SERVO DRIVE COMPATIBLE MOTORS
Model Number | Rated Output Power | Rated Torque |
---|---|---|
ECM-A3L-CY0807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CY0807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CY0807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CY0807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CY0807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CY0807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C10807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C10807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C10807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C10807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C10807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C10807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CG0807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CG0807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CG0807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CG0807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CG0807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CG0807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C20807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C20807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C20807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C20807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C20807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-C20807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CA0807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CA0807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CA0807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CA0807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CA0807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3L-CA0807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CY0807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CY0807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CY0807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CY0807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CY0807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CY0807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C10807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C10807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C10807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C10807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C10807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C10807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CG0807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CG0807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CG0807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CG0807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CG0807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CG0807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C20807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C20807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C20807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C20807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C20807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-C20807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CA0807CS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CA0807DS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CA0807PS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CA0807QS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CA0807RS1 | 0.75 kW | 2.39 (N-m) |
ECM-A3H-CA0807SS1 | 0.75 kW | 2.39 (N-m) |
ECM-B3M-CA0807RS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807RJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807CS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807DS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807PS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807QS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807CJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807DJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807PJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807QJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807SS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CA0807SJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807RS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807RJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807CS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807DS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807PS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807QS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807CJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807DJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807PJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807QJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807SS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-C20807SJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807RS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807RJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807CS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807DS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807PS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807QS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807CJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807DJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807PJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807QJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807SS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CP0807SJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807RS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807RJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807CS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807DS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807PS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807QS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807CJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807DJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807PJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807QJ1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807SS1 | 0.75 kW | 2.40 (N-m) |
ECM-B3M-CM0807SJ1 | 0.75 kW | 2.40 (N-m) |
