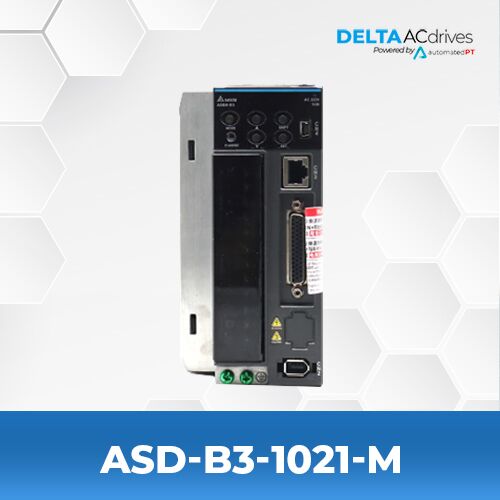

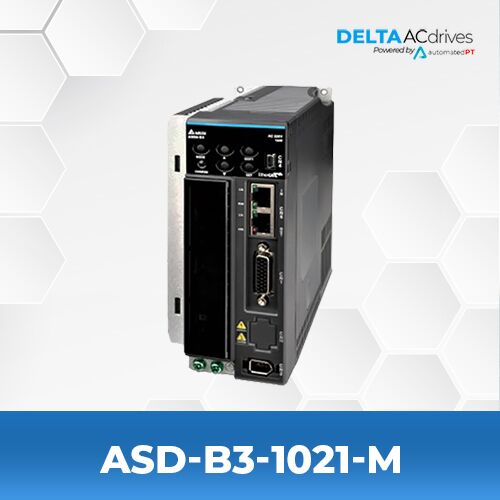

Delta ASD-B3-1021-M Servo Drive

  • Series: B3 Servo Drive
  • Phase1/3 Phase (PH)
  • 1 Kilowatts
  • 7.3 Arms Output Current
  • 220 VAC


SPECIFICATIONS

Model Name ASD-B3-1021-M
Series B3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 1 Kilowatts
Continuous Output Current 7.3 Arms
Instant Max Output Current 21.21 Arms
Model Type PR Mode, Analog Voltage Control, CANopen

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

DELTA ASD-B3-1021-M SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECM-A3L-CY0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807QS1 0.75 kW 2.39 (N-m)
ECM-B3M-EA1310RS1 1 kW 4.77 (N-m)
ECM-B3M-EA1310RJ1 1 kW 4.77 (N-m)
ECM-B3M-EA1310CS1 1 kW 4.77 (N-m)
ECM-B3M-EA1310DS1 1 kW 4.77 (N-m)
ECM-B3M-EA1310PS1 1 kW 4.77 (N-m)
ECM-B3M-EA1310QS1 1 kW 4.77 (N-m)
ECM-B3M-EA1310CJ1 1 kW 4.77 (N-m)
ECM-B3M-EA1310DJ1 1 kW 4.77 (N-m)
ECM-B3M-EA1310PJ1 1 kW 4.77 (N-m)
ECM-B3M-EA1310QJ1 1 kW 4.77 (N-m)
ECM-B3M-EA1310SS1 1 kW 4.77 (N-m)
ECM-B3M-EA1310SJ1 1 kW 4.77 (N-m)
ECM-B3M-E21310RS1 1 kW 4.77 (N-m)
ECM-B3M-E21310RJ1 1 kW 4.77 (N-m)
ECM-B3M-E21310CS1 1 kW 4.77 (N-m)
ECM-B3M-E21310DS1 1 kW 4.77 (N-m)
ECM-B3M-E21310PS1 1 kW 4.77 (N-m)
ECM-B3M-E21310QS1 1 kW 4.77 (N-m)
ECM-B3M-E21310CJ1 1 kW 4.77 (N-m)
ECM-B3M-E21310DJ1 1 kW 4.77 (N-m)
ECM-B3M-E21310PJ1 1 kW 4.77 (N-m)
ECM-B3M-E21310QJ1 1 kW 4.77 (N-m)
ECM-B3M-E21310SS1 1 kW 4.77 (N-m)
ECM-B3M-E21310SJ1 1 kW 4.77 (N-m)
ECM-B3M-EP1310RS1 1 kW 4.77 (N-m)
ECM-B3M-EP1310RJ1 1 kW 4.77 (N-m)
ECM-B3M-EP1310CS1 1 kW 4.77 (N-m)
ECM-B3M-EP1310DS1 1 kW 4.77 (N-m)
ECM-B3M-EP1310PS1 1 kW 4.77 (N-m)
ECM-B3M-EP1310QS1 1 kW 4.77 (N-m)
ECM-B3M-EP1310CJ1 1 kW 4.77 (N-m)
ECM-B3M-EP1310DJ1 1 kW 4.77 (N-m)
ECM-B3M-EP1310PJ1 1 kW 4.77 (N-m)
ECM-B3M-EP1310QJ1 1 kW 4.77 (N-m)
ECM-B3M-EP1310SS1 1 kW 4.77 (N-m)
ECM-B3M-EP1310SJ1 1 kW 4.77 (N-m)
Model Number Rated Output Power Rated Torque
