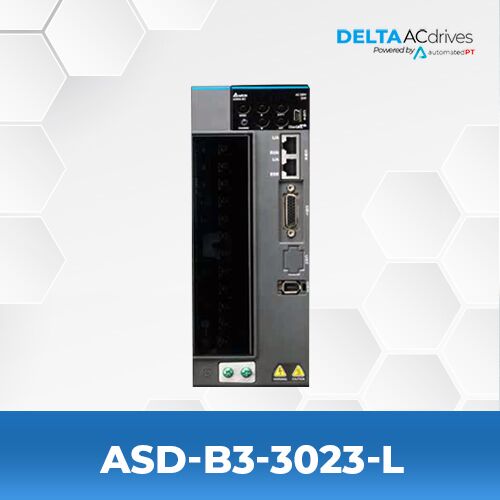

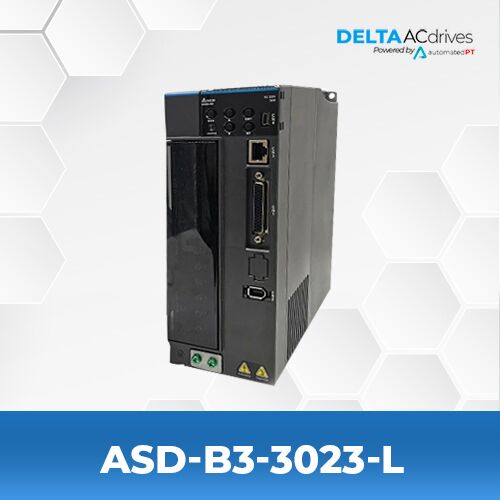

Delta ASD-B3-3023-L Servo Drive

  • Series: B3 Servo Drive
  • Phase3 Phase (PH)
  • 3 Kilowatts
  • 19.4 Arms Output Current
  • 220 VAC


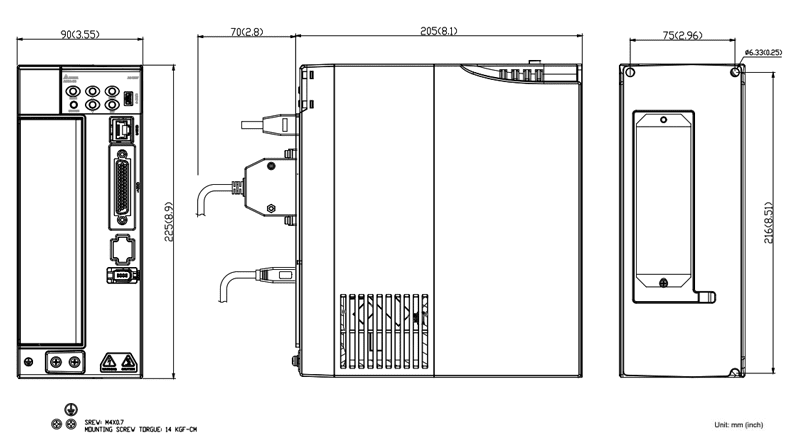

SPECIFICATIONS

Model Name ASD-B3-3023-L
Series B3 Servo Drive
Phase 3 PH
Voltage 220 VAC
Rated Output Power 3 Kilowatts
Continuous Output Current 19.4 Arms
Instant Max Output Current 58.9 Arms
Model Type PT Mode Pulse Input, PR Mode, RS-485, Analog Voltage Control

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

Model Number Rated Output Power Rated Torque
ECM-B3M-FA1830RS1 3 kW 19.1 (N-m)
ECM-B3M-FA1830RJ1 3 kW 19.1 (N-m)
ECM-B3M-FA1830CS1 3 kW 19.1 (N-m)
ECM-B3M-FA1830DS1 3 kW 19.1 (N-m)
ECM-B3M-FA1830PS1 3 kW 19.1 (N-m)
ECM-B3M-FA1830QS1 3 kW 19.1 (N-m)
ECM-B3M-FA1830CJ1 3 kW 19.1 (N-m)
ECM-B3M-FA1830DJ1 3 kW 19.1 (N-m)
ECM-B3M-FA1830PJ1 3 kW 19.1 (N-m)
ECM-B3M-FA1830QJ1 3 kW 19.1 (N-m)
ECM-B3M-FA1830SS1 3 kW 19.1 (N-m)
ECM-B3M-FA1830SJ1 3 kW 19.1 (N-m)
ECM-B3M-F21830RS1 3 kW 19.1 (N-m)
ECM-B3M-F21830RJ1 3 kW 19.1 (N-m)
ECM-B3M-F21830CS1 3 kW 19.1 (N-m)
ECM-B3M-F21830DS1 3 kW 19.1 (N-m)
ECM-B3M-F21830PS1 3 kW 19.1 (N-m)
ECM-B3M-F21830QS1 3 kW 19.1 (N-m)
ECM-B3M-F21830CJ1 3 kW 19.1 (N-m)
ECM-B3M-F21830DJ1 3 kW 19.1 (N-m)
ECM-B3M-F21830PJ1 3 kW 19.1 (N-m)
ECM-B3M-F21830QJ1 3 kW 19.1 (N-m)
ECM-B3M-F21830SS1 3 kW 19.1 (N-m)
ECM-B3M-F21830SJ1 3 kW 19.1 (N-m)
ECM-B3M-FP1830RS1 3 kW 19.1 (N-m)
ECM-B3M-FP1830RJ1 3 kW 19.1 (N-m)
ECM-B3M-FP1830CS1 3 kW 19.1 (N-m)
ECM-B3M-FP1830DS1 3 kW 19.1 (N-m)
ECM-B3M-FP1830PS1 3 kW 19.1 (N-m)
ECM-B3M-FP1830QS1 3 kW 19.1 (N-m)
ECM-B3M-FP1830CJ1 3 kW 19.1 (N-m)
ECM-B3M-FP1830DJ1 3 kW 19.1 (N-m)
ECM-B3M-FP1830PJ1 3 kW 19.1 (N-m)
ECM-B3M-FP1830QJ1 3 kW 19.1 (N-m)
ECM-B3M-FP1830SS1 3 kW 19.1 (N-m)
ECM-B3M-FP1830SJ1 3 kW 19.1 (N-m)
ECM-B3M-FM1830RS1 3 kW 19.1 (N-m)
ECM-B3M-FM1830RJ1 3 kW 19.1 (N-m)
ECM-B3M-FM1830CS1 3 kW 19.1 (N-m)
ECM-B3M-FM1830DS1 3 kW 19.1 (N-m)
ECM-B3M-FM1830PS1 3 kW 19.1 (N-m)
ECM-B3M-FM1830QS1 3 kW 19.1 (N-m)
ECM-B3M-FM1830CJ1 3 kW 19.1 (N-m)
ECM-B3M-FM1830DJ1 3 kW 19.1 (N-m)
ECM-B3M-FM1830PJ1 3 kW 19.1 (N-m)
ECM-B3M-FM1830QJ1 3 kW 19.1 (N-m)
ECM-B3M-FM1830SS1 3 kW 19.1 (N-m)
ECM-B3M-FM1830SJ1 3 kW 19.1 (N-m)
