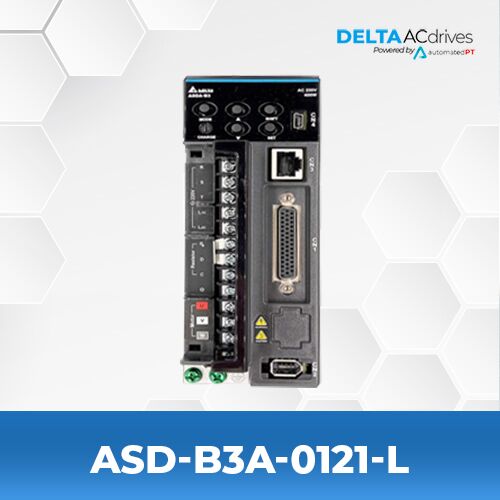

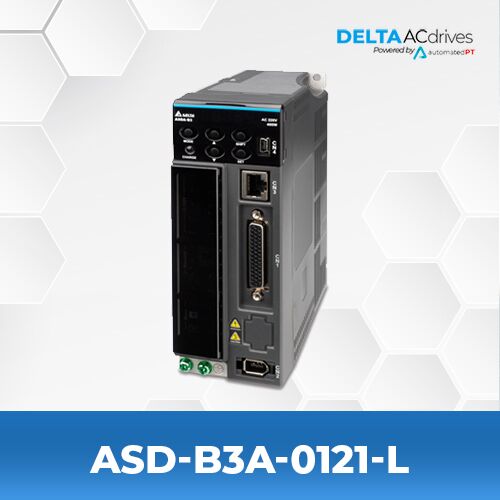

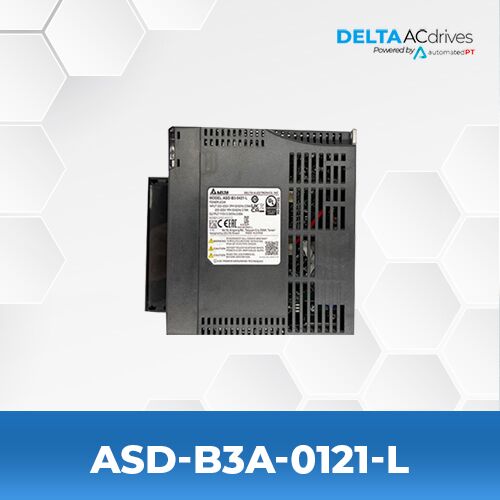

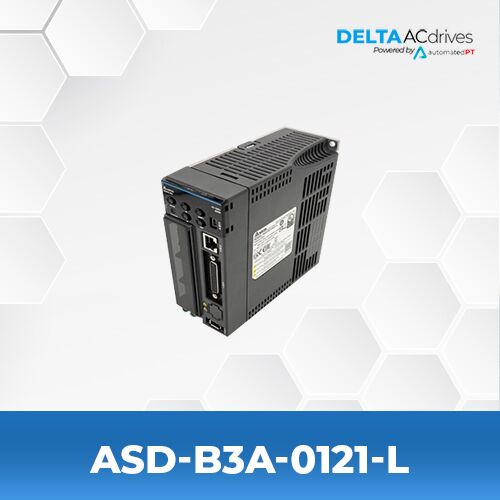

Delta ASD-B3A-0121-L Servo Drive

  • Series: B3 Servo Drive
  • Phase1/3 Phase (PH)
  • 100 Watts
  • 0.9 Arms Output Current
  • 220 VAC


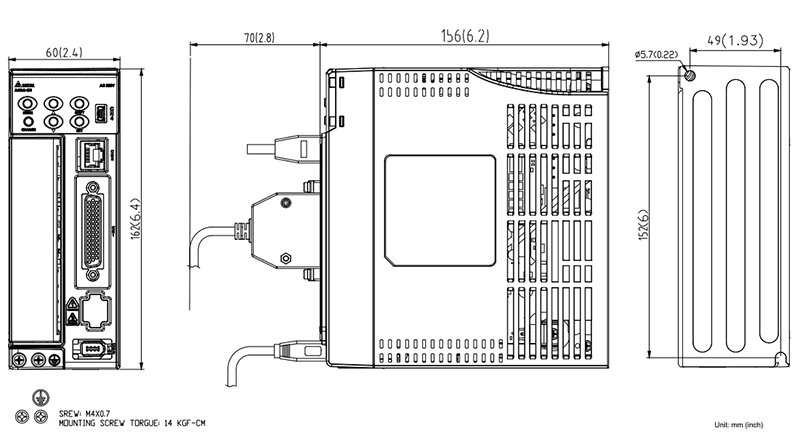

SPECIFICATIONS

Model Name ASD-B3A-0121-L
Series B3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 100 watts
Continuous Output Current 0.9 Arms
Instant Max Output Current 3.88 Arms
Model Type PT Mode Pulse Input, PR Mode, RS-485, Analog Voltage Control, STO

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • STO (Safe Torque Off)
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

DELTA ASD-B3A-0121-L SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECM-A3L-CY040FCS1 0.05 kW 0.159 (N-m)
ECM-A3L-CY040FDS1 0.05 kW 0.159 (N-m)
ECM-A3L-CY040FPS1 0.05 kW 0.159 (N-m)
ECM-A3L-CY040FRS1 0.05 kW 0.159 (N-m)
ECM-A3L-CY040FSS1 0.05 kW 0.159 (N-m)
ECM-A3L-CY040FQS1 0.05 kW 0.159 (N-m)
ECM-A3L-C1040FCS1 0.05 kW 0.159 (N-m)
ECM-A3L-C1040FDS1 0.05 kW 0.159 (N-m)
ECM-A3L-C1040FPS1 0.05 kW 0.159 (N-m)
ECM-A3L-C1040FRS1 0.05 kW 0.159 (N-m)
ECM-A3L-C1040FSS1 0.05 kW 0.159 (N-m)
ECM-A3L-C1040FQS1 0.05 kW 0.159 (N-m)
ECM-A3L-CG040FCS1 0.05 kW 0.159 (N-m)
ECM-A3L-CG040FDS1 0.05 kW 0.159 (N-m)
ECM-A3L-CG040FPS1 0.05 kW 0.159 (N-m)
ECM-A3L-CG040FRS1 0.05 kW 0.159 (N-m)
ECM-A3L-CG040FSS1 0.05 kW 0.159 (N-m)
ECM-A3L-CG040FQS1 0.05 kW 0.159 (N-m)
ECM-A3L-C2040FCS1 0.05 kW 0.159 (N-m)
ECM-A3L-C2040FDS1 0.05 kW 0.159 (N-m)
ECM-A3L-C2040FPS1 0.05 kW 0.159 (N-m)
ECM-A3L-C2040FRS1 0.05 kW 0.159 (N-m)
ECM-A3L-C2040FSS1 0.05 kW 0.159 (N-m)
ECM-A3L-C2040FQS1 0.05 kW 0.159 (N-m)
ECM-A3L-CA040FCS1 0.05 kW 0.159 (N-m)
ECM-A3L-CA040FDS1 0.05 kW 0.159 (N-m)
ECM-A3L-CA040FPS1 0.05 kW 0.159 (N-m)
ECM-A3L-CA040FRS1 0.05 kW 0.159 (N-m)
ECM-A3L-CA040FSS1 0.05 kW 0.159 (N-m)
ECM-A3L-CA040FQS1 0.05 kW 0.159 (N-m)
ECM-A3L-CY0401CS1 0.1 kW 0.32 (N-m)
ECM-A3L-CY0401DS1 0.1 kW 0.32 (N-m)
ECM-A3L-CY0401PS1 0.1 kW 0.32 (N-m)
ECM-A3L-CY0401RS1 0.1 kW 0.32 (N-m)
ECM-A3L-CY0401SS1 0.1 kW 0.32 (N-m)
ECM-A3L-CY0401QS1 0.1 kW 0.32 (N-m)
ECM-A3L-C10401CS1 0.1 kW 0.32 (N-m)
ECM-A3L-C10401DS1 0.1 kW 0.32 (N-m)
ECM-A3L-C10401PS1 0.1 kW 0.32 (N-m)
ECM-A3L-C10401RS1 0.1 kW 0.32 (N-m)
ECM-A3L-C10401SS1 0.1 kW 0.32 (N-m)
ECM-A3L-C10401QS1 0.1 kW 0.32 (N-m)
ECM-A3L-CG0401CS1 0.1 kW 0.32 (N-m)
ECM-A3L-CG0401DS1 0.1 kW 0.32 (N-m)
ECM-A3L-CG0401PS1 0.1 kW 0.32 (N-m)
ECM-A3L-CG0401RS1 0.1 kW 0.32 (N-m)
ECM-A3L-CG0401SS1 0.1 kW 0.32 (N-m)
ECM-A3L-CG0401QS1 0.1 kW 0.32 (N-m)
ECM-A3L-C20401CS1 0.1 kW 0.32 (N-m)
ECM-A3L-C20401DS1 0.1 kW 0.32 (N-m)
ECM-A3L-C20401PS1 0.1 kW 0.32 (N-m)
ECM-A3L-C20401RS1 0.1 kW 0.32 (N-m)
ECM-A3L-C20401SS1 0.1 kW 0.32 (N-m)
ECM-A3L-C20401QS1 0.1 kW 0.32 (N-m)
ECM-A3L-CA0401CS1 0.1 kW 0.32 (N-m)
ECM-A3L-CA0401DS1 0.1 kW 0.32 (N-m)
ECM-A3L-CA0401PS1 0.1 kW 0.32 (N-m)
ECM-A3L-CA0401RS1 0.1 kW 0.32 (N-m)
ECM-A3L-CA0401SS1 0.1 kW 0.32 (N-m)
ECM-A3L-CA0401QS1 0.1 kW 0.32 (N-m)
ECM-A3H-C2040FCS1 0.05 kW 0.159 (N-m)
ECM-A3H-C2040FDS1 0.05 kW 0.159 (N-m)
ECM-A3H-C2040FPS1 0.05 kW 0.159 (N-m)
ECM-A3H-C2040FQS1 0.05 kW 0.159 (N-m)
ECM-A3H-C2040FRS1 0.05 kW 0.159 (N-m)
ECM-A3H-C2040FSS1 0.05 kW 0.159 (N-m)
ECM-A3H-CA040FCS1 0.05 kW 0.159 (N-m)
ECM-A3H-CA040FDS1 0.05 kW 0.159 (N-m)
ECM-A3H-CA040FPS1 0.05 kW 0.159 (N-m)
ECM-A3H-CA040FQS1 0.05 kW 0.159 (N-m)
ECM-A3H-CA040FRS1 0.05 kW 0.159 (N-m)
ECM-A3H-CA040FSS1 0.05 kW 0.159 (N-m)
ECM-A3H-CY0401CS1 0.1 kW 0.32 (N-m)
ECM-A3H-CY0401DS1 0.1 kW 0.32 (N-m)
ECM-A3H-CY0401PS1 0.1 kW 0.32 (N-m)
ECM-A3H-CY0401QS1 0.1 kW 0.32 (N-m)
ECM-A3H-CY0401RS1 0.1 kW 0.32 (N-m)
ECM-A3H-CY0401SS1 0.1 kW 0.32 (N-m)
ECM-A3H-C10401CS1 0.1 kW 0.32 (N-m)
ECM-A3H-C10401DS1 0.1 kW 0.32 (N-m)
ECM-A3H-C10401PS1 0.1 kW 0.32 (N-m)
ECM-A3H-C10401QS1 0.1 kW 0.32 (N-m)
ECM-A3H-C10401RS1 0.1 kW 0.32 (N-m)
ECM-A3H-C10401SS1 0.1 kW 0.32 (N-m)
ECM-A3H-CG0401CS1 0.1 kW 0.32 (N-m)
ECM-A3H-CG0401DS1 0.1 kW 0.32 (N-m)
ECM-A3H-CG0401PS1 0.1 kW 0.32 (N-m)
ECM-A3H-CG0401QS1 0.1 kW 0.32 (N-m)
ECM-A3H-CG0401RS1 0.1 kW 0.32 (N-m)
ECM-A3H-CG0401SS1 0.1 kW 0.32 (N-m)
ECM-A3H-C20401CS1 0.1 kW 0.32 (N-m)
ECM-A3H-C20401DS1 0.1 kW 0.32 (N-m)
ECM-A3H-C20401PS1 0.1 kW 0.32 (N-m)
ECM-A3H-C20401QS1 0.1 kW 0.32 (N-m)
ECM-A3H-C20401RS1 0.1 kW 0.32 (N-m)
ECM-A3H-C20401SS1 0.1 kW 0.32 (N-m)
ECM-A3H-CA0401CS1 0.1 kW 0.32 (N-m)
ECM-A3H-CA0401DS1 0.1 kW 0.32 (N-m)
ECM-A3H-CA0401PS1 0.1 kW 0.32 (N-m)
ECM-A3H-CA0401QS1 0.1 kW 0.32 (N-m)
ECM-A3H-CA0401RS1 0.1 kW 0.32 (N-m)
ECM-A3H-CA0401SS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401RS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401RJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401CS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401DS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401PS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401QS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401CJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401DJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401PJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401QJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401SS1 0.1 kW 0.32 (N-m)
ECM-B3L-CA0401SJ1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401RS1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401RJ1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401CS1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401DS1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401PS1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401QS1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401CJ1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401DJ1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401PJ1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401QJ1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401SS1 0.1 kW 0.32 (N-m)
ECM-B3L-C20401SJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401RS1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401RJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401CS1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401DS1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401PS1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401QS1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401CJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401DJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401PJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401QJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401SS1 0.1 kW 0.32 (N-m)
ECM-B3L-CP0401SJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401RS1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401RJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401CS1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401DS1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401PS1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401QS1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401CJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401DJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401PJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401QJ1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401SS1 0.1 kW 0.32 (N-m)
ECM-B3L-CM0401SJ1 0.1 kW 0.32 (N-m)
Model Number Rated Output Power Rated Torque
