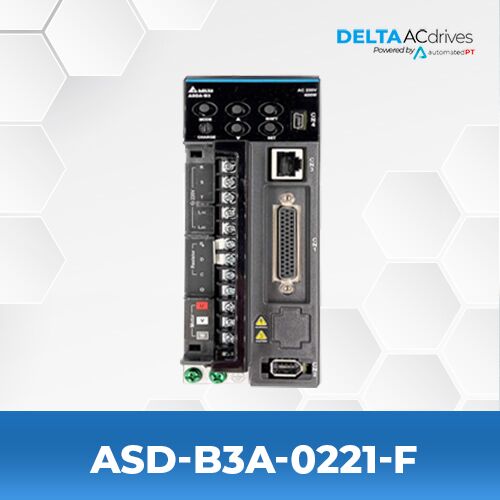

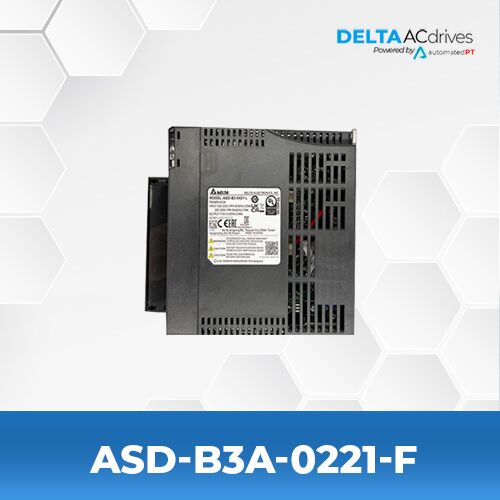

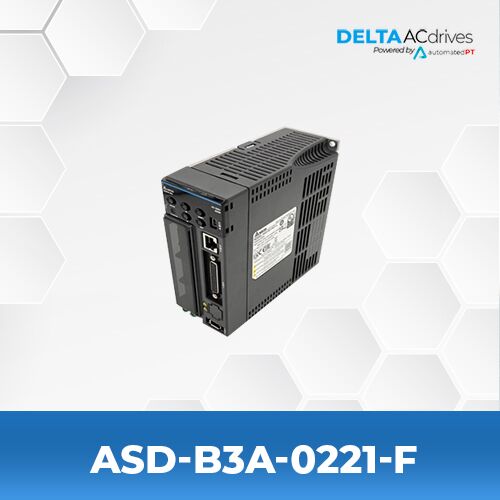

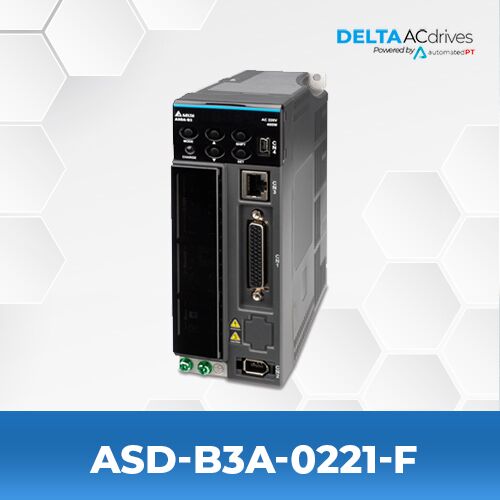

Delta ASD-B3A-0221-F Servo Drive
- Series: B3 Servo Drive
- Phase1/3 Phase (PH)
- 200 Watts
- 1.55 Arms Output Current
- 220 VAC
SPECIFICATIONS
| Model Name | ASD-B3A-0221-F |
| Series | B3 Servo Drive |
| Phase | 1/3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 200 watts |
| Continuous Output Current | 1.55 Arms |
| Instant Max Output Current | 7.07 Arms |
| Model Type | PT Mode Pulse Input, PR Mode, Analog Voltage Control, DMCNET, STO |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA B3 Servo Drive Catalog | |
| Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- STO (Safe Torque Off)
- DC Bus Sharing
- Smaller drive and motors compared to B2
DELTA ASD-B3A-0221-F SERVO DRIVE COMPATIBLE MOTORS
| Model Number | Rated Output Power | Rated Torque |
|---|---|---|
| ECM-A3L-CY0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CY0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CY0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CY0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CY0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CY0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C10602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C10602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C10602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C10602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C10602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C10602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CG0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CG0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CG0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CG0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CG0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CG0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C20602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C20602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C20602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C20602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C20602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-C20602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CA0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CA0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CA0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CA0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CA0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3L-CA0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CY0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CY0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CY0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CY0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CY0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CY0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C10602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C10602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C10602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C10602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C10602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C10602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CG0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CG0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CG0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CG0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CG0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CG0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C20602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C20602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C20602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C20602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C20602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-C20602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CA0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CA0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CA0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CA0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CA0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-A3H-CA0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602RJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602CJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602DJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602PJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602QJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CA0602SJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602RJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602CJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602DJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602PJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602QJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-C20602SJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602RJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602CJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602DJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602PJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602QJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CP0602SJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602RS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602RJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602CS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602DS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602PS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602QS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602CJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602DJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602PJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602QJ1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602SS1 | 0.2 kW | 0.64 (N-m) |
| ECM-B3M-CM0602SJ1 | 0.2 kW | 0.64 (N-m) |
