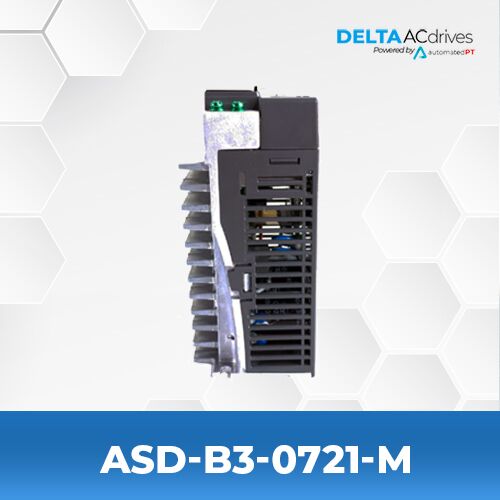

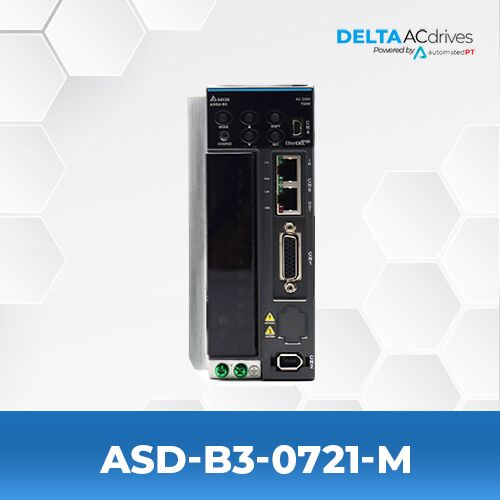

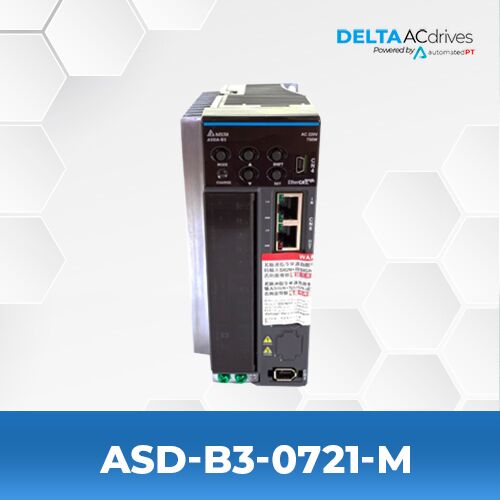

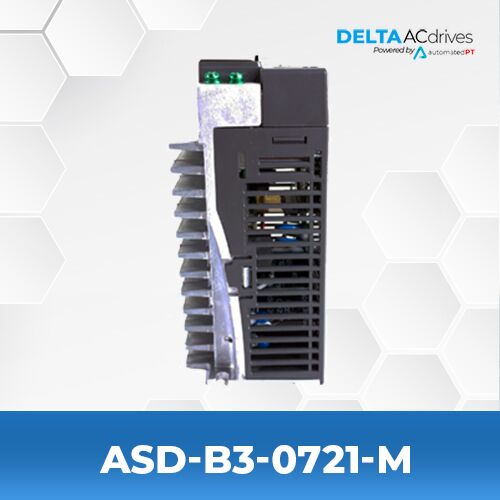

Delta ASD-B3A-0721-M Servo Drive
- Series: B3 Servo Drive
- Phase1/3 Phase (PH)
- 750 Watts
- 5.1 Arms Output Current
- 220 VAC
SPECIFICATIONS
| Model Name | ASD-B3A-0721-M |
| Series | B3 Servo Drive |
| Phase | 1/3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 750 watts |
| Continuous Output Current | 5.1 Arms |
| Instant Max Output Current | 16.4 Arms |
| Model Type | PT Mode Pulse Input, PR Mode, RS-485, Analog Voltage Control, CANopen, STO |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA B3 Servo Drive Catalog | |
| Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- STO (Safe Torque Off)
- DC Bus Sharing
- Smaller drive and motors compared to B2
DELTA ASD-B3A-0721-M SERVO DRIVE COMPATIBLE MOTORS
| Model Number | Rated Output Power | Rated Torque |
|---|---|---|
| ECM-A3L-CY0807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CY0807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CY0807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CY0807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CY0807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CY0807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C10807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C10807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C10807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C10807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C10807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C10807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CG0807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CG0807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CG0807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CG0807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CG0807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CG0807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C20807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C20807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C20807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C20807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C20807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-C20807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CA0807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CA0807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CA0807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CA0807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CA0807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3L-CA0807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CY0807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CY0807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CY0807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CY0807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CY0807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CY0807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C10807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C10807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C10807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C10807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C10807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C10807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CG0807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CG0807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CG0807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CG0807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CG0807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CG0807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C20807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C20807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C20807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C20807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C20807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-C20807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CA0807CS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CA0807DS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CA0807PS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CA0807QS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CA0807RS1 | 0.75 kW | 2.39 (N-m) |
| ECM-A3H-CA0807SS1 | 0.75 kW | 2.39 (N-m) |
| ECM-B3M-CA0807RS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807RJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807CS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807DS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807PS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807QS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807CJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807DJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807PJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807QJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807SS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CA0807SJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807RS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807RJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807CS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807DS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807PS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807QS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807CJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807DJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807PJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807QJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807SS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-C20807SJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807RS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807RJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807CS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807DS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807PS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807QS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807CJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807DJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807PJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807QJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807SS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CP0807SJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807RS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807RJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807CS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807DS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807PS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807QS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807CJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807DJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807PJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807QJ1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807SS1 | 0.75 kW | 2.40 (N-m) |
| ECM-B3M-CM0807SJ1 | 0.75 kW | 2.40 (N-m) |
