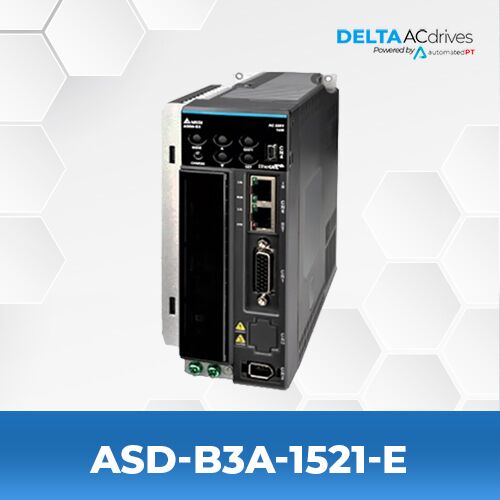

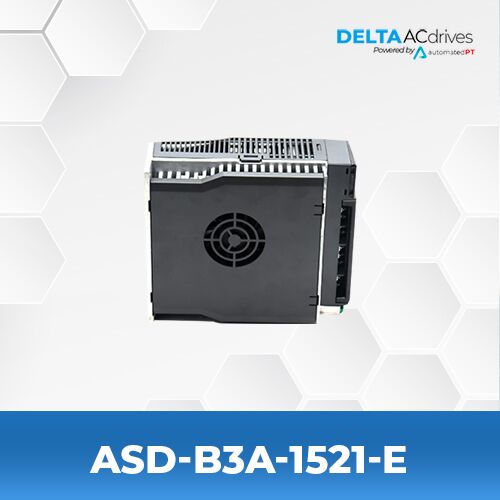

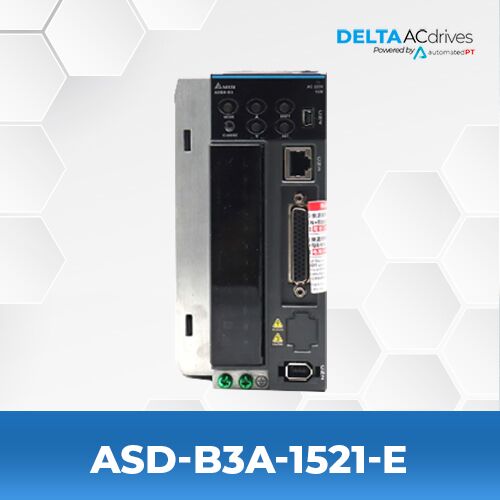

Delta ASD-B3A-1521-E Servo Drive

  • Series: B3 Servo Drive
  • Phase1/3 Phase (PH)
  • 1.5 Kilowatts
  • 8.3 Arms Output Current
  • 220 VAC


SPECIFICATIONS

Model Name ASD-B3A-1521-E
Series B3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 1.5 Kilowatts
Continuous Output Current 8.3 Arms
Instant Max Output Current 27 Arms
Model Type PT Mode Pulse Input, PR Mode, Analog Voltage Control, EtherCAT, STO

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • STO (Safe Torque Off)
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

Model Number Rated Output Power Rated Torque
ECM-B3M-EA1315RS1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315RJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315CS1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315DS1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315PS1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315QS1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315CJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315DJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315PJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315QJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315SS1 1.5 kW 7.16 (N-m)
ECM-B3M-EA1315SJ1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315RS1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315RJ1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315CS1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315DS1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315PS1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315QS1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315CJ1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315DJ1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315PJ1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315QJ1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315SS1 1.5 kW 7.16 (N-m)
ECM-B3M-E21315SJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315RS1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315RJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315CS1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315DS1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315PS1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315QS1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315CJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315DJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315PJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315QJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315SS1 1.5 kW 7.16 (N-m)
ECM-B3M-EP1315SJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315RS1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315RJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315CS1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315DS1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315PS1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315QS1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315CJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315DJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315PJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315QJ1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315SS1 1.5 kW 7.16 (N-m)
ECM-B3M-EM1315SJ1 1.5 kW 7.16 (N-m)
Model Number Rated Output Power Rated Torque
