SPECIFICATIONS
Model Name | CMC-DN01 |
Interface | 5-Pin 5.08 mm Pluggable Connector |
Transmission Method | CAN |
Transmission Cable | Shielded twisted pair cable (with 2 power cables) |
Transmission Speed | 125 Kbps, 250 Kbps, 500 Kbps and extendable serial transmission speed mode |
Network Protocol | DeviceNet protocol |
Interface | C50-Pin communication terminal |
Transmission Method | SPI communication |
Terminal Function | 1. Communicating with AC motor drive 2. Transmitting power supply from AC motor drive |
Communication Protocol | Delta HSSP protocol |
FILES
Catalog | Delta C2000 Series Catalog |
Users Manual | Delta C2000 Series Users Manual |
Catalog | Delta CP2000 Catalog |
Users Manual | Delta CP2000 Users Manual |
Catalog | Delta CH2000 Series Catalog |
Users Manual | Delta CH2000 Series Users Manual |
Instruction Sheet | Delta CMC-DN01 Instruction Sheet |
Users Manual | Delta CMC-DN01 Users Manual |
C2000 EDS File | Delta CMC-DN01 C2000 EDS File |
CH2000 EDS File | Delta CMC-DN01 CH2000 EDS File |
CP2000 EDS File | Delta CMC-DN01 CP2000 EDS File |

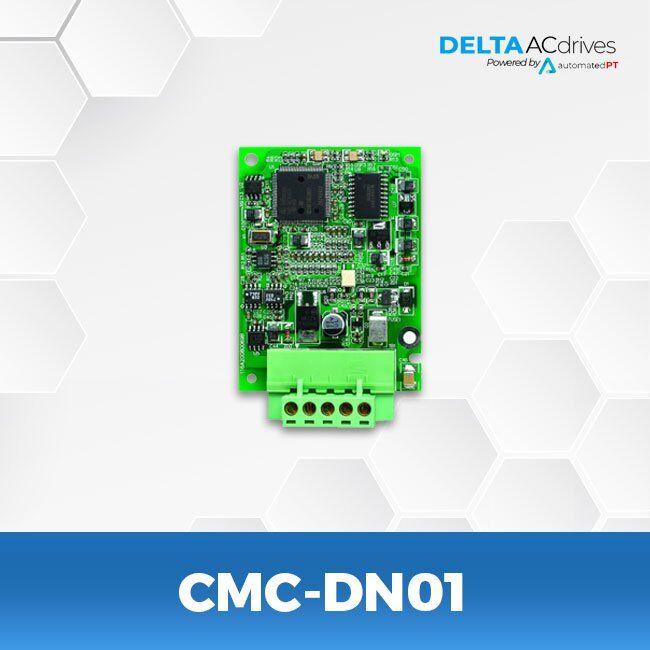

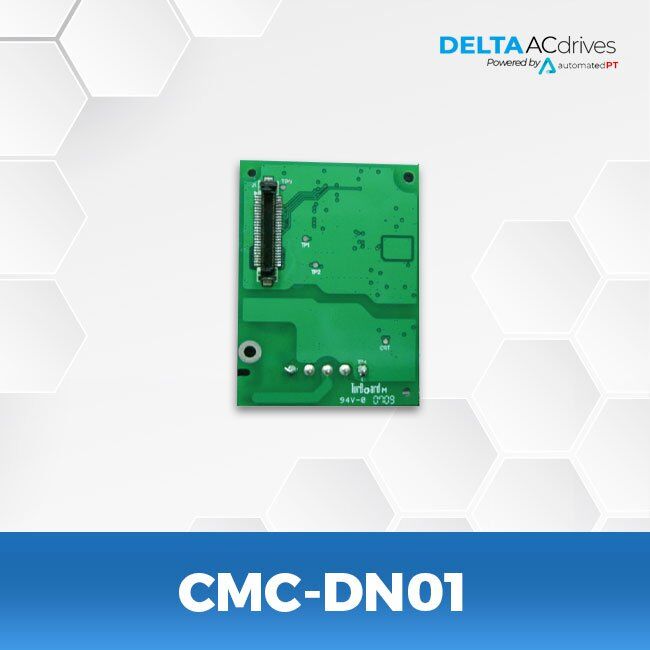

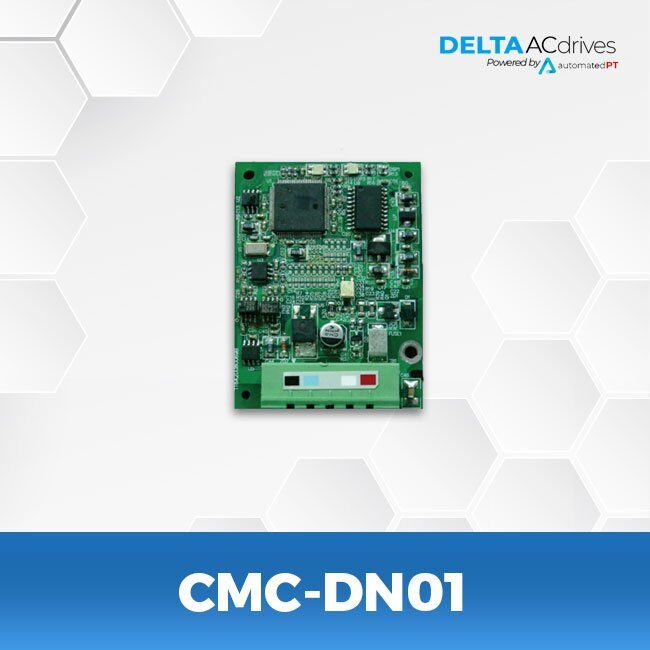

PRODUCT DESCRIPTION
Enables DeviceNet communication with your VFD
► Supports Group 2 Only Slave device connection and polling I/O data exchange
► Supports max. 32 words input / 32 words output and remote I/O function for I/O mapping
► Node address and serial transmission speed can be set up on AC motor drive
► Power supplied from AC motor drive
Enables DeviceNet communication with your VFD
► Supports Group 2 Only Slave device connection and polling I/O data exchange
► Supports max. 32 words input / 32 words output and remote I/O function for I/O mapping
► Node address and serial transmission speed can be set up on AC motor drive
► Power supplied from AC motor drive
