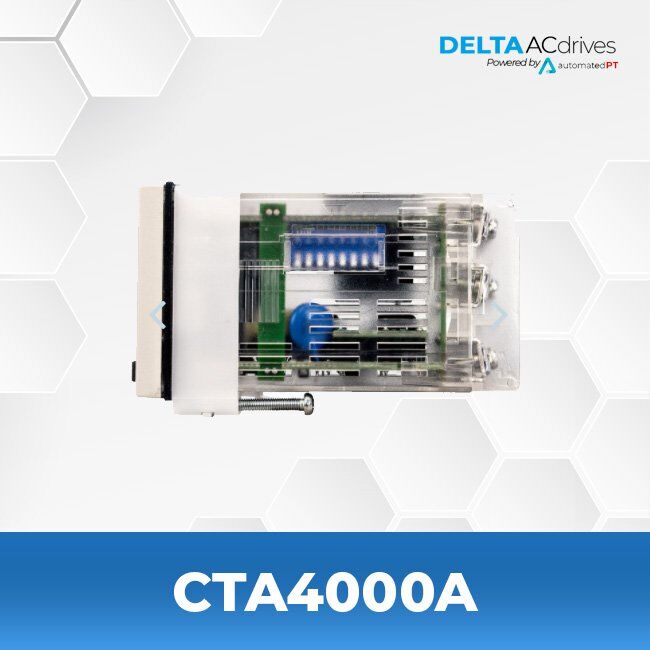

Delta CTA4000A CTA Controller

$131.40

  • CTA Series
  • Panel Size : 48 mm × 48 mm
  • Double-line, 6-digit negative transmissive LCD display
  • Voltage Range : 85% to 110%, Rated voltage

PRODUCT SPECIFICATIONS

Model Name CTA4000A
Series CTA Series
Display Double-line, 6-digit negative transmissive LCD display
Panel Size 48 mm × 48 mm
Input Signal Non-voltage input (NPN): ON impedance max. 1 K ohm ON residual voltage: max. 2 V
Voltage input (PNP): High level: 4.5 to 30 VDC, Low level: 0 to 2 VDC
Output1 Transistor: NPN open collector. When 100 mA / 30 VDC, residual voltage = max. 1.5 VDC
Output 2 Transistor: NPN open collector. When 100 mA / 30 VDC, residual voltage = max. 1.5 VDC
Voltage Range 85% to 110%, Rated voltage
Power Supply AC 100 ~ 240V
Power Consumption Less than 10VA
Communication none

FILES

Catalog Delta CTA Series Catalog
Dimensions Delta CTA4000A Dimensions
Instruction Sheet Delta CTA4000A Instruction Sheet
2D CAD Delta CTA4000A 2D CAD
3D CAD Delta CTA4000A 3D CAD  |  (View 3D File)

SERIES DESCRIPTION

CTA Timer/Counter/Tachometer is able to receive external input signals and calculate the times of events, frequency and driving speed. CTA can be applied to batch counting, total counting, length measurement, position control, accurate timing, rotation speed and so on.

CTA Timer/Counter/Tachometer features easy and handy parameter settings and tuning and are certified by international standards CE and UL

Features

  • 3-in-1 timer/counter/tachometer
  • Mixed timer + counter function
  • 6-digit LCD display
  • Maximum speed of the counter: 10 Kpps
  • NPN or PNP input signals available
  • Pre-scale function
  • Counting types: 1-stage, 2-stage, batch, total, dual
