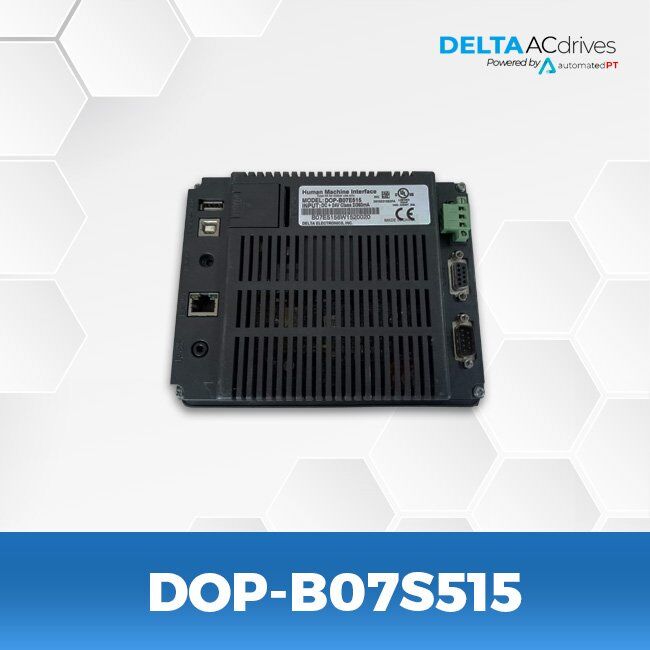

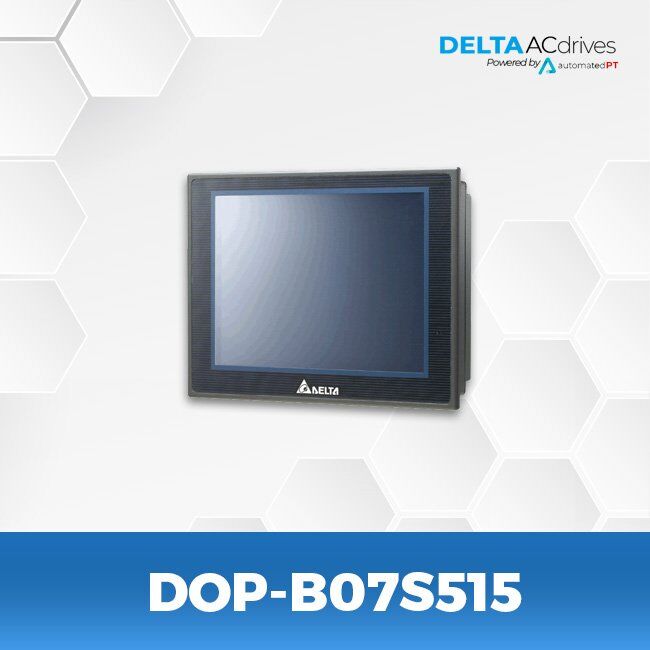

Delta DOP-B07S515 DOP-B Series HMI Touchscreen

  • DOP-B Series HMI Touchscreen
  • 7 Inches Display Size
  • 800 X 600 Pixel Resolution
  • 24 Volts Input
This product is no longer manufactured or sold. The Delta recommended replacement is the DOP-107EG drive. Please check the dimensions and specifications on the replacement panel page or contact us at 800-985-6929 to confirm the replacement will work for your application.


We provide all Delta AC Delta human machine interfaces, delta hmi, human machine interface, human to machine interface, hmi interface, hmi interfaces, hmi human interface, human machine interface systems, hmi, dop-b07s515.

Delta 7″ High Resoultion, Standard – DOP-B07S515


7″ (800 x 600 pixels) TFT LCD 65536 colors
3 sets of COM ports, support RS232 / RS422 / RS485
For data transfer/download: RS232, USB
Supports USB Host, direct connection to USB disk, printer and mouse
Supports SD card
Touch screen complies with IP65
Supports horizontal / vertical display
Editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7
