PRODUCT SPECIFICATIONS

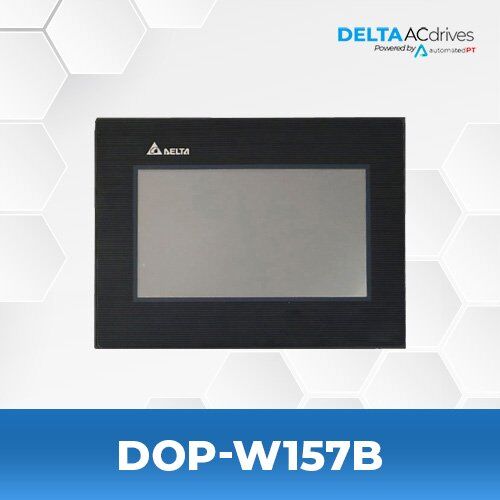

Model Name | DOP-W157B |
Series | DOP-W Series |
Display Size and Type | 15” TFT LCD |
Display Colors | 16-bit |
Resolution (pixels) | 1024 x 768 |
Luminance (cd/m2) | 450 |
MCU | 256 |
RAM (MB) | 256 |
Backup Memory (MB) | 16 |

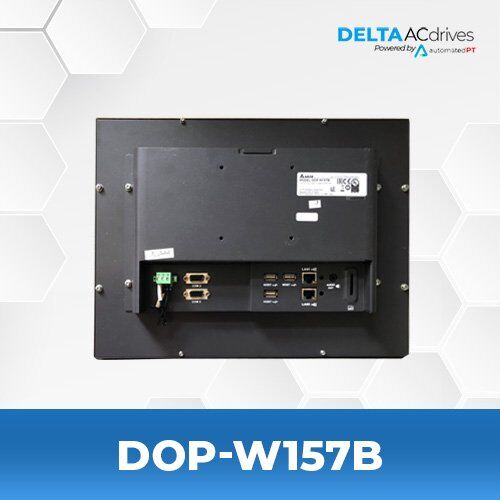

USB | 3 x v2.0 USB |
COM2 | RS-232/RS-422/RS-485 |
COM3 | RS-232/RS-422/RS-485 |
Power Consumption (W) | 21.6 |
IP Level | IP65 / UL type 1 |

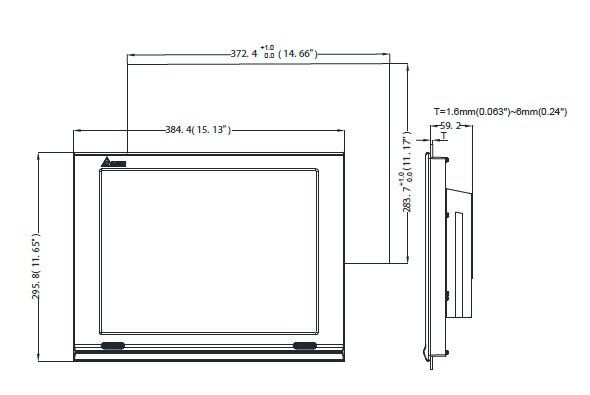

Dimensions | 15.13 (in) x 11.64 (in) x 2.66 (in) |
FILES
Catalog | Delta DOP-W Series Catalog |
Dimensions | Delta DOP-W157B Dimensions |
Instruction Sheet | Delta DOP-W157B Instruction Sheet |
Cable Selection Guide | Delta PLC-HMI Cable Selection Guide |
2D CAD | Delta DOP-W157B 2D CAD |
3D CAD | Delta DOP-W157B 3D CAD |
UL Certificate | Delta DOP-W157B UL Certificate |
SERIES DESCRIPTION
The DOP-B series provides various types and different sizes of touch panel HMIs with multiple dimensions and colors, and also offers fast and convenient control functions to meet the diverse application requirements demanded of industrial automation machines.
A Wide Range of Options
Three serial communication interfaces (RS-232/RS-422/RS-485), USB disk, Ethernet, audio output, SD card and more are supported for various applications.
Powerful Controller Drivers Support
Not just Delta industrial automation products, but more than 30 brands, and over 100 models of PLCs or controllers can be connected for effortless communication and versatile operation.
High Quality and Full-Color Display
A full 65,536-color display is available on all models. With a whole new 2D drawing technique, the screen resolution is enhanced for more realistic images and for more colorful and vivid displays.
