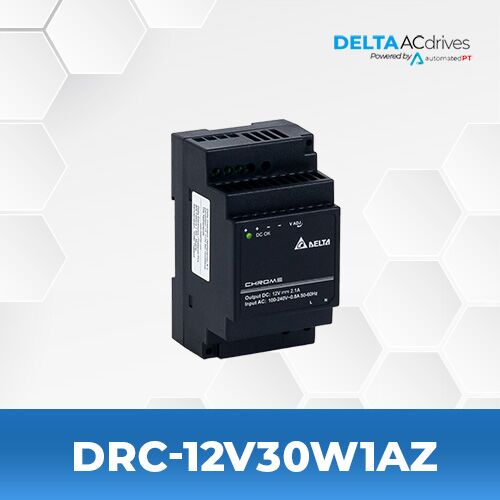

Delta DRC-12V30W1AZ DIN Rail CHROME Series

Delta DRC-12V30W1AZ DIN Rail CHROME Series

$68.00

  • Output Voltage: 12V
  • 1 Phase
  • Output Power: 25W
  • Output Current: 2.1A
  • Input Voltage Range: 90-264 Vac
  • Class II, Double Isolation (No Earth connection is required)

SPECIFICATIONS

Model Name DRC-12V30W1AZ
Series DIN Rail Power Supply
Output Voltage 12V
Input Voltage Range 90-264 Vac
Output Current 2.1A
Output Power 25W

CATALOG & MANUALS

Catalog Delta DIN Rail Product Selection Guide
Users Manual Delta DIN Rail Manual

Features Include:

  • Class II, Double Isolation (No Earth connection is required)
  • Universal AC input voltage range and full power up to 55°C
  • Power will not de-rate for the entire input voltage range
  • Efficiency > 85.0% @ 115Vac & 230Vac
  • Can be installed in compact cabinets
  • NEC Class 2 and Limited Power Source (LPS) approvals
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and UL508
