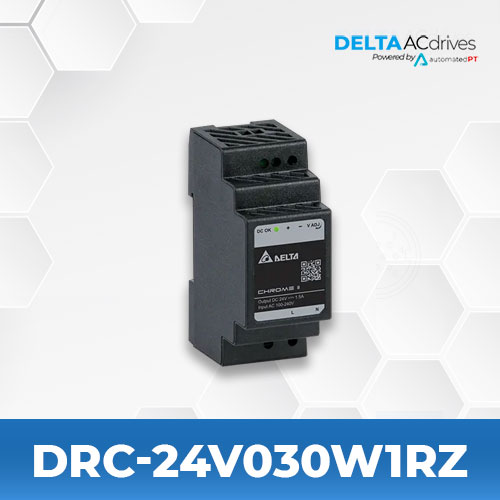

Delta DRC-24V030W1RZ DIN Rail Chrome II Series

$27.00

  • Chrome II Series
  • Phase: 1
  • Output Voltage: 24 V
  • Output Power: 30 W

PRODUCT SPECIFICATIONS

Model Name DRC-24V030W1RZ
Phase 1
Output Voltage Range 24 V
Output Power 30 W

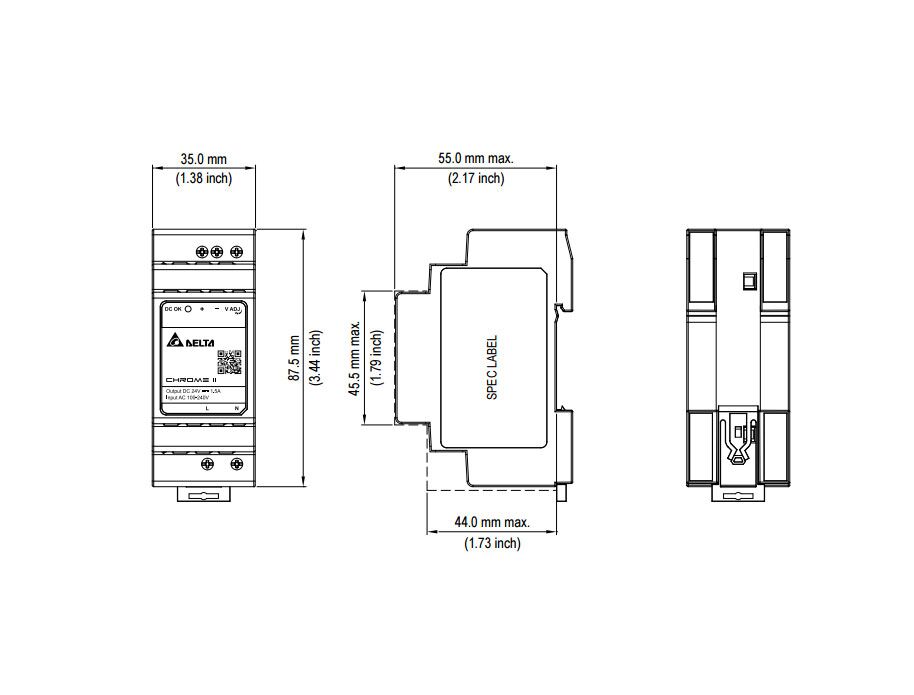

Dimensions (H x W x D) 3.44 in x 1.38 in x 2.17 in
Unit Weight 0.29 lbs

FILES

Catalog Delta DIN Rail Power Supplies Catalog
Dimensions Delta DRC-24V030W1RZ Dimensions
Data Sheet Delta DRC-24V030W1RZ Datasheet
2D CAD Delta DRC-24V030W1RZ 2D CAD
3D CAD Delta DRC-24V030W1RZ 3D CAD  |  (View 3D File)
UL Certificate Delta DRC-24V030W1RZ UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta offers a broad range of standard industrial power supplies in DIN rail, panel mount, and open frame types. The DIN rail lineup includes models with cold start at -40°C, Advanced Power Boost, smart monitoring, and ultra-slim designs to meet demanding applications.

Features
• Class II, Double Isolation (No earth connection is required)
• Full power up to 55°C
• Power will not de-rate for the entire input voltage range
• Can be installed in compact cabinets
• NEC Class 2 and Limited Power Source (LPS) approvals (except DRC-12V100W1AZ)
• Household appliance approvals IEC/EN 60335-1 (DRC-24V10W1HZ)
