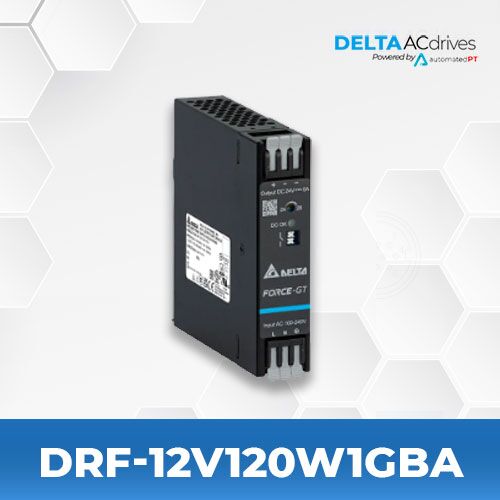

Delta DRF-12V120W1GBA DIN Rail Force-GT Series

$102.60

  • Force-GT Series
  • Phase: 1
  • Output Voltage: 12 V
  • Output Power: 120 W

PRODUCT SPECIFICATIONS

Model Name DRF-12V120W1GBA
Phase 1
Output Voltage Range 12 V
Output Power 120 W

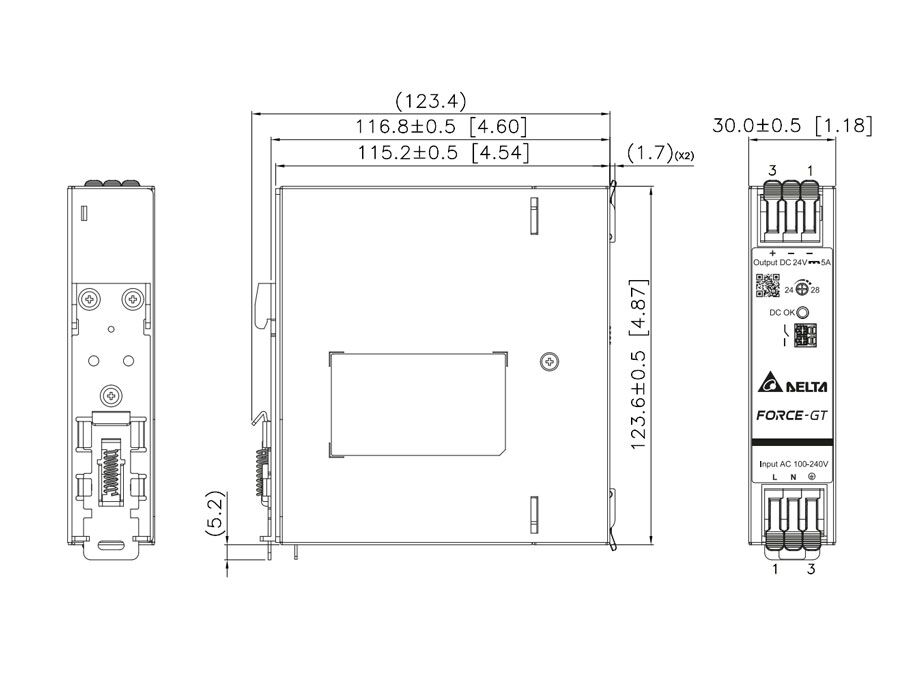

Dimensions (H x W x D) 4.6 in x 1.18 in x 4.87 in
Unit Weight 1.1 lbs

FILES

Catalog Delta DIN Rail Power Supplies Catalog
Dimensions Delta DRF-12V120W1GBA Dimensions
Data Sheet Delta DRF-12V120W1GBA Datasheet
2D CAD Delta DRF-12V120W1GBA 2D CAD
3D CAD Delta DRF-12V120W1GBA 3D CAD  |  (View 3D File)
UL Certificate Delta DRF-12V120W1GBA UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta offers a broad range of standard industrial power supplies in DIN rail, panel mount, and open frame types. The DIN rail lineup includes models with cold start at -40°C, Advanced Power Boost, smart monitoring, and ultra-slim designs to meet demanding applications.

Features
• Built-in constant current circuit for charging
applications
• Full load operating temperature up to 60°C
• Cold start at -40°C
• Ultra-Slim design
• Long life electrolytic capacitor
• Built-in DC OK relay and LED indicator
• Conformal coating on PCBAs to protect against
common dust and pollutants
