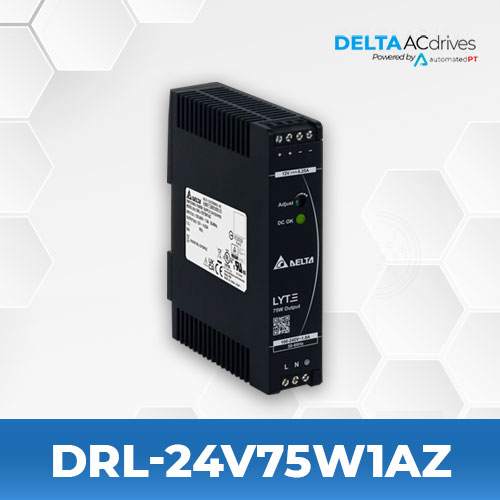

Delta DRL-24V75W1AZ DIN Rail Lyte Series

$74.00

  • Output Voltage: 24V
  • Output Power: 75W
  • Output Current: 3.125A
  • Input Voltage Range: 85-264Vac
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range

SPECIFICATIONS

Model Name DRP024V060W1AZ
Series DIN Rail Power Supply
Output Voltage 24V
Input Voltage Range 85-264Vac
Output Current 3.125A
Unit Weight 0.33 kg (0.73 lb)

CATALOG & MANUALS

Catalog Delta DIN Rail Product Selection Guide
Users Manual Delta DIN Rail Manual

Features Include:

  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 3 seconds
  • Rugged and compact design (Vibration 5G, Shock 30G)
  • Conforms to harmonics current IEC/EN 61000-3-2, Class A
  • Wide operating temperature range -20°C to 80°C
  • Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
  • Certified according to IEC/EN/UL 62368-1
