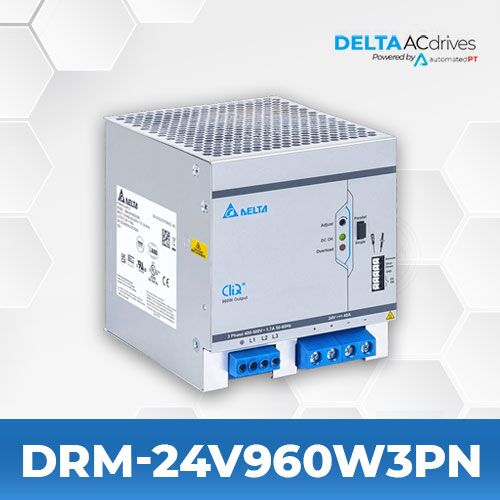

Delta DRM-24V960W3PN DIN Rail CliQ M Series

  • CliQ M Series
  • Phase: 3
  • Output Voltage: 24 V
  • Output Power: 960 W

PRODUCT SPECIFICATIONS

Model Name DRM-24V960W3PN
Phase 3
Output Voltage Range 24 V
Output Power 960 W
Dimensions (H x W x D) 4.88 in x 4.33 in x 5 in
Unit Weight 5 lbs

FILES

Catalog Delta DIN Rail Power Supplies Catalog

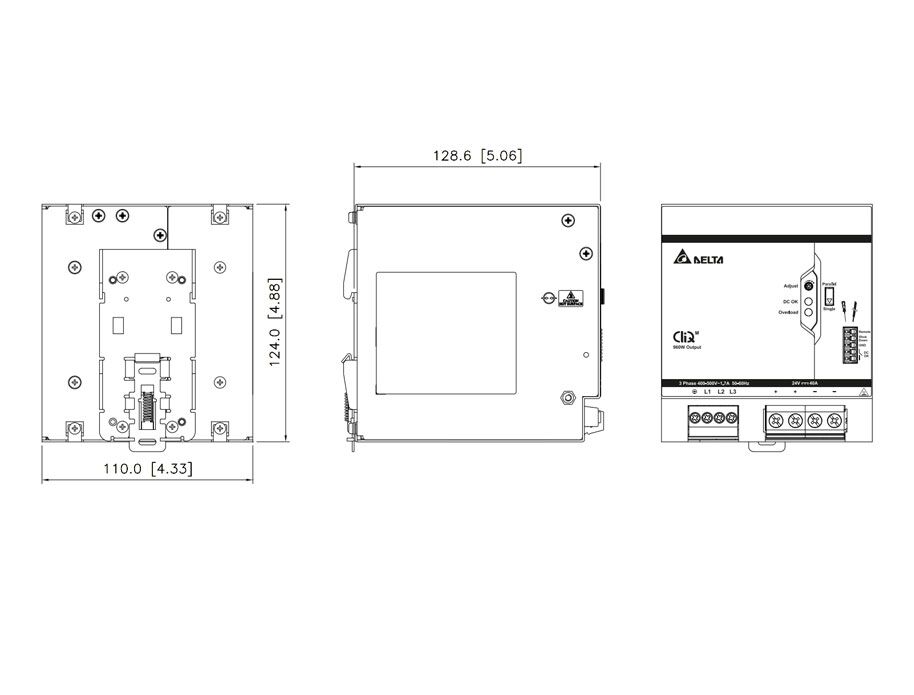

Dimensions Delta DRM-24V960W3PN Dimensions
Data Sheet Delta DRM-24V960W3PN Datasheet
2D CAD Delta DRM-24V960W3PN 2D CAD
3D CAD Delta DRM-24V960W3PN 3D CAD  |  (View 3D File)
UL Certificate Delta DRM-24V960W3PN UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta offers a broad range of standard industrial power supplies in DIN rail, panel mount, and open frame types. The DIN rail lineup includes models with cold start at -40°C, Advanced Power Boost, smart monitoring, and ultra-slim designs to meet demanding applications.

Features
• High power density in corrosion resistant aluminium casing
• Power Boost of 150% up to 7 s
• Advanced Power Boost (APB)
• DNV GL and ABS approvals for maritime applications
• Extreme low temperature cold start at -40°C
• Built-in DC OK contact and LED indicator for DC OK/ Overload
• Conformal coating on PCBAs to protect against
common dust and chemical pollutants
