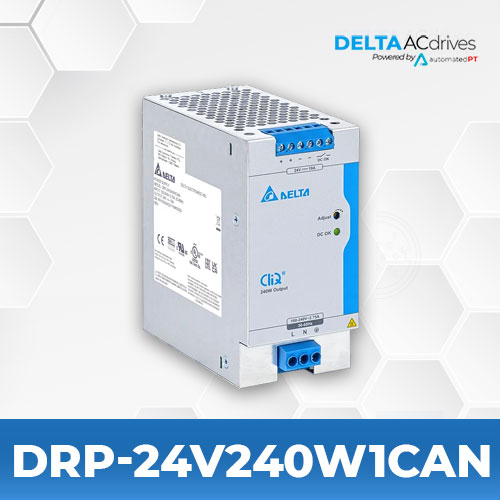

Delta DRP-24V240W1CAN DIN Rail CliQ III Series

  • CliQ III Series
  • Phase: 1
  • Output Voltage: 24 V
  • Output Power: 240 W

PRODUCT SPECIFICATIONS

Model Name DRP-24V240W1CAN
Phase 1
Output Voltage Range 24 V
Output Power 240 W
Dimensions (H x W x D) 4.88 in x 3.23 in x 5 in
Unit Weight 2.65 lbs

FILES

Catalog Delta DIN Rail Power Supplies Catalog
Dimensions Delta DRP-24V240W1CAN Dimensions
Data Sheet Delta DRP-24V240W1CAN Datasheet
2D CAD Delta DRP-24V240W1CAN 2D CAD
3D CAD Delta DRP-24V240W1CAN 3D CAD  |  (View 3D File)
UL Certificate Delta DRP-24V240W1CAN UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta offers a broad range of standard industrial power supplies in DIN rail, panel mount, and open frame types. The DIN rail lineup includes models with cold start at -40°C, Advanced Power Boost, smart monitoring, and ultra-slim designs to meet demanding applications.

Features
• Built-in constant current circuit for charging applications
• High efficiency of up to 94% at 230 VAC
• Power Boost of 150% up to 5 s
• SEMI F47 compliance at 120 VAC
• Extreme low temperature cold start at -40°C
• Built-in DC OK Contact and LED indicator for DC OK
• Conformal coating on PCBA to protect against common
dust and pollutants
