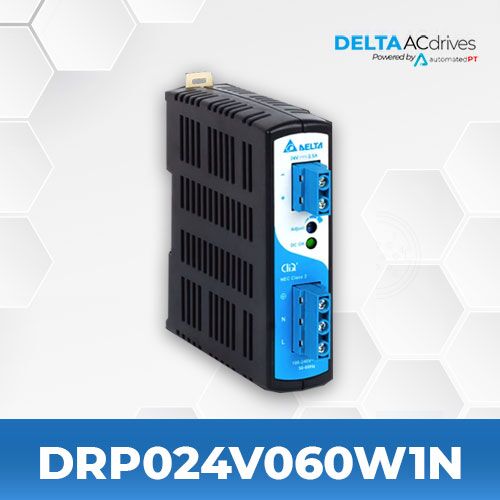

Delta DRP024V060W1N DIN Rail CliQ II Series

  • CliQ II Series
  • Phase: 1
  • Output Voltage: 24 V
  • Output Power: 60 W

PRODUCT SPECIFICATIONS

Model Name DRP024V060W1N
Phase 1
Output Voltage Range 24 V
Output Power 60 W

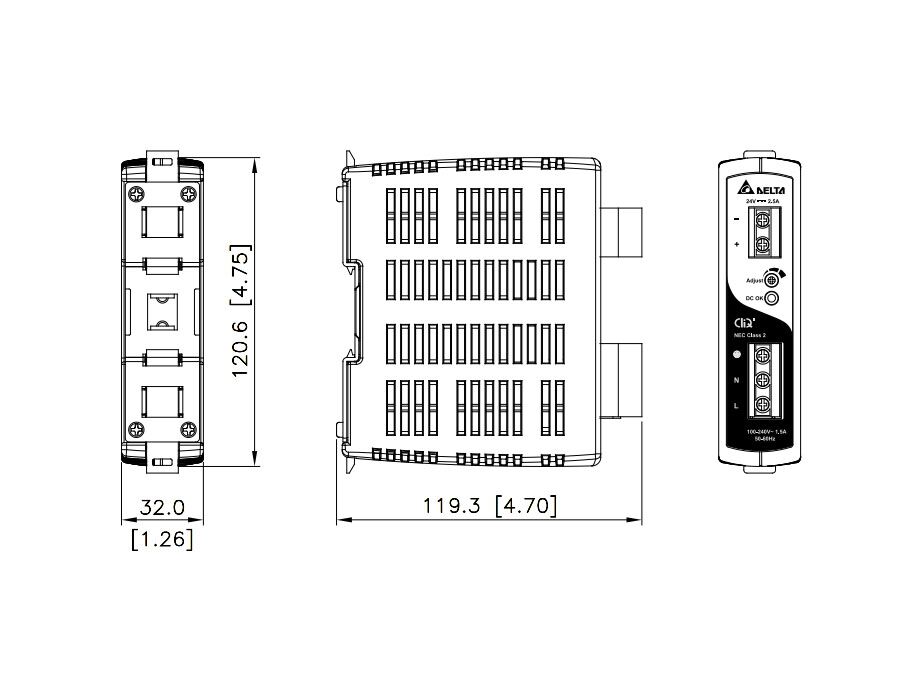

Dimensions (H x W x D) 4.75 in x 1.26 in x 4.7 in
Unit Weight 0.73 lbs

FILES

Catalog Delta DIN Rail Power Supplies Catalog
Dimensions Delta DRP024V060W1N Dimensions
Data Sheet Delta DRP024V060W1N Datasheet
2D CAD Delta DRP024V060W1N 2D CAD
3D CAD Delta DRP024V060W1N 3D CAD  |  (View 3D File)
UL Certificate Delta DRP024V060W1N UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta offers a broad range of standard industrial power supplies in DIN rail, panel mount, and open frame types. The DIN rail lineup includes models with cold start at -40°C, Advanced Power Boost, smart monitoring, and ultra-slim designs to meet demanding applications.

Features

• Built-in constant current circuit for charging
applications
• Full load operating temperature up to 60°C
• Cold start at -40°C
• Ultra-Slim design
• Long life electrolytic capacitor
• Built-in DC OK relay and LED indicator
• Conformal coating on PCBAs to protect against
common dust and pollutants
