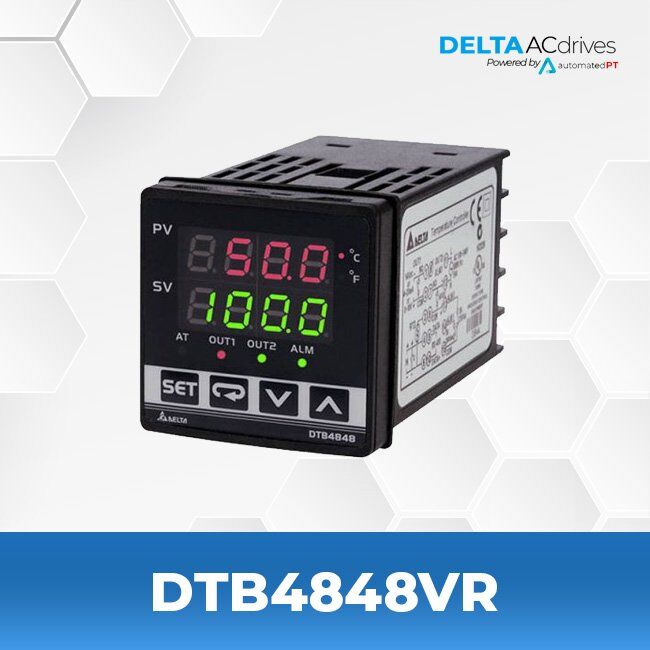

Delta DTB4848VR DTB Controller

$157.50

  • DTB Series
  • Communication Protocol: Modbus protocol, ASCII / RTU format
  • 2-line 7-segment LED display, 4 digits available
  • RS-485 digital communication, 2,400 ~ 38,400bps

PRODUCT SPECIFICATIONS

Model Name DTB4848VR
Series DTB Series
Display 2-line 7-segment LED display, 4 digits available
Panel Size 1/16 DIN 48 × 48 mm
Voltage Range 85 ~ 110 % rated voltage
Power Supply AC 100~240V
Power Consumption <5 VA
Input temperature sensors Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK
Platinum RTD: Pt100, JPt100
Analog input: 0 ~ 5V, 0 ~ 10V, 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 50 mV
Output Type Output 1: Voltage pulse, 14V, -20%~+10%(Max. 40 mA)

Output 2: Relay, SPDT, 250VAC, 5A
Control Methods PID, programmable PID, On/Off, Manual
Communication RS-485 digital communication, 2,400 ~ 38,400bps
IP Level IP65

FILES

Catalog Delta DTB Series Catalog

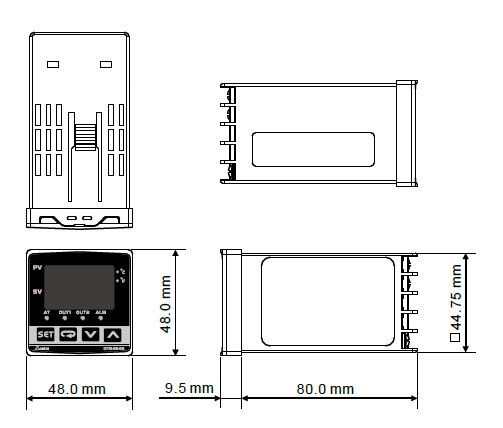

Dimensions Delta DTB4848VR Dimensions
Instruction Sheet Delta DTB4848VR Instruction Sheet
2D CAD Delta 2D CAD

SERIES DESCRIPTION

The DTB Series is designed with a linear voltage output and adopts dual-loop output control for simultaneous heating and cooling and to rapidly reach a target temperature. The DTB Series features a built-in RS-485 communication interface (Modbus ASCII / RTU 2,400 ~ 38,400 bps). The programmable PID control function allows users to set up to 64 groups of different temperature and control time.

Optional functions:

  • Current transformer (CT) – output by alarm
  • EVENT function – switching between 2 SVs by using PLC or switches

    • Many Sizes Available
    From 48 × 24 mm to 96 × 96 mm, all panel sizes comply with international standards

    Quality Assurance
    All temperature controllers adopt an isolated switching power supply

  • 100 ~ 240 VAC / 24 VDC input power supply applicable in all countries of the world
  • CE, UL and C-Tick certified

    • Supports Various Sensors
    Built-in various sensor input modes: Thermocouple, platinum RTD or linear voltage/current
