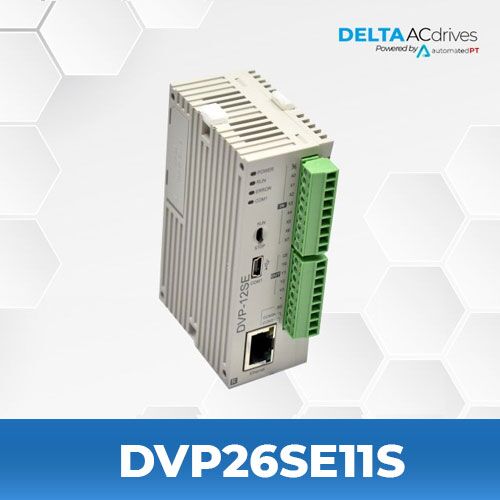

Delta DVP26SE11S DVP-SE Series PLC

$517.39

Lead time – 1-2 weeks

  • DVP-SE Series
  • Program Capacity: 16k Steps
  • Output Method: Transistor (PNP)
  • Built-in mini USB port, RS-485 port*2 and Ethernet port that supports Modbus TCP and EtherNet/IP Slave (adapter)

PRODUCT SPECIFICATIONS

Model Name DVP26SE11S
Series DVP-SE Series
Output Method Transistor (PNP)
Program Capacity 16k Steps
Inputs 14
Outputs 12
High-Speed Counter 4 points of high-speed pulse output: 100 kHz / 2 points, 10 kHz / 2 points
8 points of high-speed pulse input: 100 kHz / 2 points, 10 kHz / 6 points, 1 set of A / B phase 50 kHz
Execution Speed 0.64μs
Communication Built-in mini USB port, RS-485 port*2 and Ethernet port

FILES

Catalog Delta DVP-SE Series Catalog
Instruction Sheet Delta DVP26SE11S Instruction Sheet
UL Certificate Delta DVP26SE11S UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The most complete network type slim PLC in the industry

Features

    • 32-bit CPU for high-speed processing
    • Program capacity: 16 k steps
    • Data register: 12 k words
    • Max. execution speed of basic instructions: 0.64 μs
    • Built-in mini USB port, RS-485 port*2 and Ethernet port that supports Modbus TCP and EtherNet/IP Slave (adapter)
    • IP Filter functions as firewall for first line protection against malware and network threats
    • Supports DVP-S Series modules (left-side and right-side)
    • No battery required; RTC function operates for 15 days after power off
