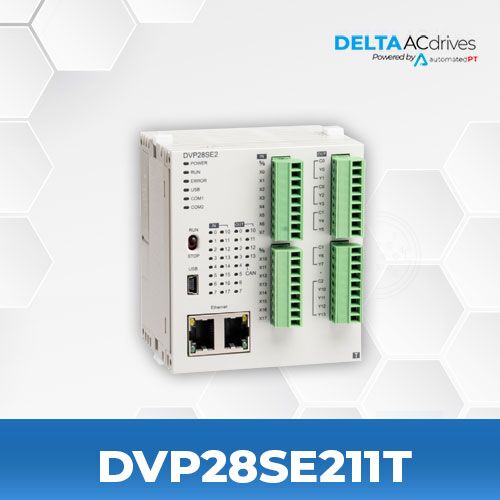

Delta DVP28SE211T DVP-SE Series PLC

  • DVP-SE2 Series
  • Program Capacity: 64k steps
  • Programming Languages: IL, LD, SFC
  • Supports up to 512 digital I/Os, 8 right-side, 8 left-side high-speed extension modules

PRODUCT SPECIFICATIONS

Model Name DVP28SE211T
Series DVP-SE2 Series
Programming Languages IL, LD, SFC
Output Method Transistor (NPN)
Program Capacity 64k steps
Inputs 16
Outputs 12
Max. I/O 512 digital I/Os
Software ISPSoft V3.20 or later versions
High-Speed Counter 100 kHz
Execution Speed LD : 0.35μs, MOV : 1.29μs
Communication 1x Ethernet port (dual-interface with Switch function), 2x RS-485 ports, 1x CAN port
USB 1 port, Mini USB B type for PLC program upload/download, monitor and firmware upgrading

FILES

Catalog Delta DVP-SE2 Series Catalog

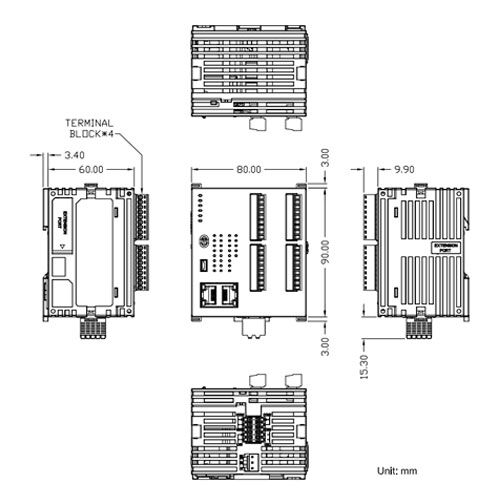

Dimensions Delta DVP28SE211T Dimensions
Instruction Sheet Delta DVP28SE211T Instruction Sheet
2D CAD Delta DVP28SE211T 2D CAD
3D CAD Delta DVP28SE211T 3D CAD  |  (View 3D File)
UL Certificate Delta DVP28SE211T UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The second eneration DVP-SE2 Series with built-in dual Ethernet ports (switch) facilitates easy network building. The SE2 Series not only enables daisy chain topology ut also greatly reduces wiring time.

Features

    • Adopts 32-Bit processor core with increased frequency, doubling overall PLC execution speed
    • 3 sets of built-in 100 kHz high speed counter, and 4-axis 100 kHz pulse output
    • Supports up to 512 digital I/Os, 8 right-side, 8 left-side high-speed extension modules
    • Program capacity up to 64K, with 12,000 built-in general registers and 8,000 file registers
    • A standard USB 2.0 interface decreases the time it takes to download the program, onitor the program, and configure the hardware.
    • 2 x RS-485 serial communication ports (COM1, COM2) with a built-in CAN port, supporting elta’s proprietary drive communication mode
      (controls up to 8 servo axes) and CANopen S301 protocol (up to 16 slave stations)
    • Built-in dual Ethernet ports support switch function or dual IP mode
    • Built-in Ethernet interface supports Modbus TCP, Ethernet/IP Adapter and TCP/UDP Socket function
