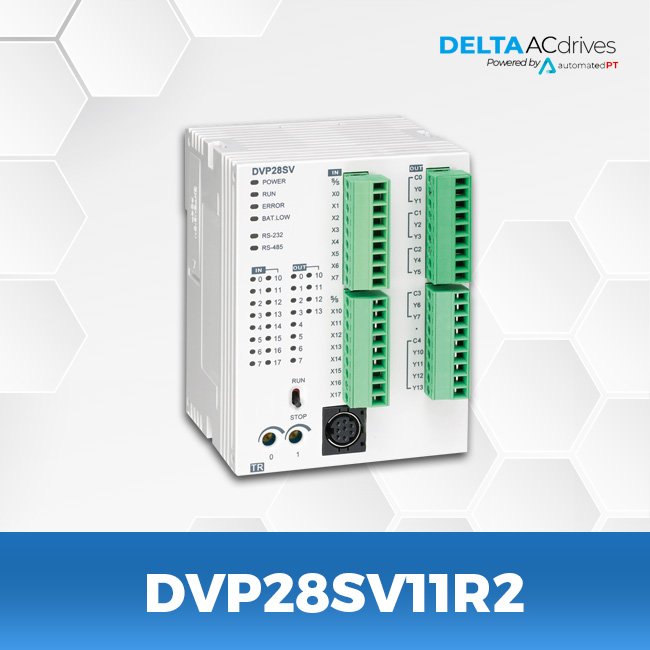

Delta DVP28SV11R2 DVP-SV Series PLC

  • DVP-SV2 Series
  • Output Method: Relay
  • Communication: Ethernet
  • Supports 4 hardware 200kHz high speed counters

PRODUCT SPECIFICATIONS

Model Name DVP28SV11R2
Series DVP-SV2 Series
Output Method Relay
Inputs 16
Outputs 12
High-speed Counter 4 hardware 200kHz
Execution Speed 0.24μs
Communication Ethernet

FILES

Catalog Delta DVP-SV2 Series Catalog
Dimensions Delta DVP28SV11R2 Dimensions
Instruction Sheet Delta DVP28SV11R2 Instruction Sheet
2D CAD Delta DVP28SV11R2 2D CAD
3D CAD Delta DVP28SV11R2 3D CAD  |  (View 3D File)
UL Certificate Delta DVP28SV11R2 UL Certificate
Cable Selection Guide Delta DVP28SV11R2 Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The new generation DVP-SV2 PLC is the high-end model of the Delta DVP-S series. It provides larger program capacities and data registers for more demanding and complex applications.

Features

  • High-speed pulse output: 4 axes of 200kHz pulse output
  • Supports 4 hardware 200kHz high speed counters
  • Various motion control instructions to achieve high-speed and high-precision positioning control for labeling machines, packaging machines, printing machines and more applications
  • Linear / arc interpolation motion control function
  • Provides up to 16 external interrupt pointers
