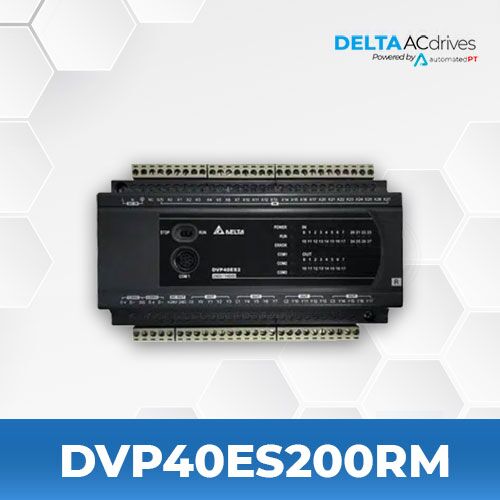

Delta DVP40ES200RM DVP-ES Series PLC

  • DVP-ES200 Series
  • Output Method: Relay
  • Program Capacity: 16k Steps
  • Inputs: 24

PRODUCT SPECIFICATIONS

Model Name DVP40ES200RM
Series DVP-ES200 Series
Program Capacity 16k Steps
Output Method Relay
Inputs 24
Max I/O Points 40 I/O
Outputs 16
Communication Built-in 1 RS-232 and 2 RS-485 ports

FILES

Catalog Delta DVP-ES200 Series Catalog

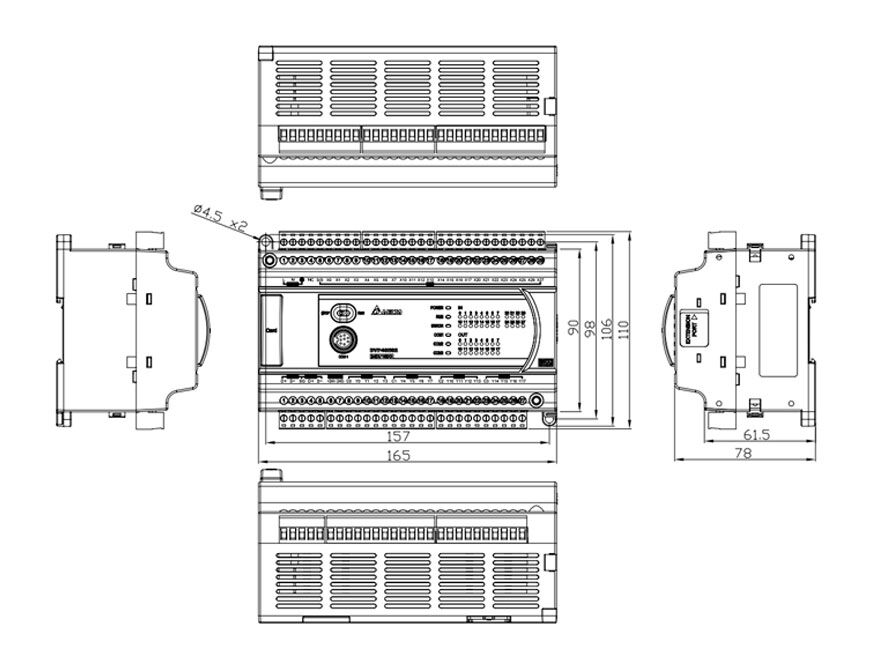

Dimensions Delta DVP40ES200RM Dimensions
Instruction Sheet Delta DVP40ES200RM Instruction Sheet
2D CAD Delta DVP40ES200RM 2D CAD
3D CAD Delta DVP40ES200RM 3D CAD  |  (View 3D File)
UL Certificate Delta DVP40ES200RM UL Certificate
Cable Selection Guide Delta DVP40ES200RM Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Boosts productivity with high execution speed and built-in CANopen interface, and specializes in noise-immunity and easy wiring

Features

  • Built-in 1Mbps CANopen interface; COM3 supports standard CANopen DS301 protocol
  • Versatile communication types: PDO, SDO, synchronous (SYNC), Emergency, NMT and many more
  • 1Mbps high-speed transmission for large data:
    -Max. PDO transmission: up to 390 bytes
    -Max. PDO receiving: up to 390 bytes
  • Ability to connect with 16 slaves via CANopen
  • Built-in 1 RS-232 and 1 RS-485 ports
