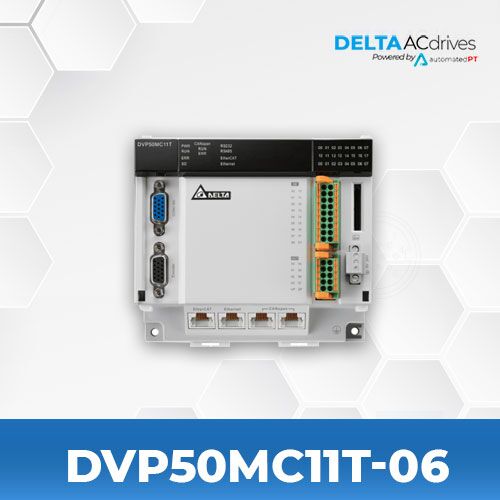

Delta DVP50MC11T-06 DVP-MC Series PLC

Delta DVP50MC11T-06 DVP-MC Series PLC

  • DVP-50MC Series
  • Output Method: Transistor (NPN)
  • Program Capacity: 20 MB
  • Communication: Ethernet, CANopen, Incremental encoder, Absolute encoder, EtherCAT

PRODUCT SPECIFICATIONS

Model Name DVP50MC11T-06
Series Multi-axis Motion Controller
Output Method Transistor (NPN)
Program Capacity 20 MB
Inputs 16
Outputs 8 (NPN)
Communication Ethernet, CANopen, Incremental encoder, Absolute encoder, EtherCAT
Axes Controlled 6

FILES

Catalog Delta DVP-50MC Series Catalog
Dimensions Delta DVP50MC11T-06 Dimensions
Instruction Sheet Delta DVP50MC11T-06 Instruction Sheet
2D CAD Delta DVP50MC11T-06 2D CAD
3D CAD Delta DVP50MC11T-06 3D CAD  |  (View 3D File)
UL Certificate Delta DVP50MC11T-06 UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

DVP50MC is a type of multi-axis motion controller researched and produced by Delta autonomously on the basis of EtherCAT technology. It supports standard instruction libraries defined by international organizations for motion control and brings great convenience to user to learn and develop projects quickly.

Features

    • Up to 24 real axes control (virtual axis no.: 1 ~ 32, can’t be repetitive with real axis no.)
    • Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use
    • Supports encoder axis and virtual axis
    • Single axis motion control instructions: speed, torque, homing, and position setup
    • Application instructions: electronic gear, E-Cam, and rotary cut
    • G-code/group axes: 8 axes linear / arc / helical interpolation
