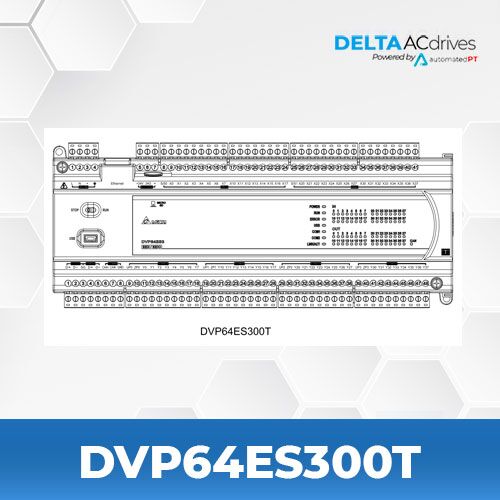

Delta DVP64ES300T DVP-ES Series PLC

  • DVP-ES3 Series
  • Output Method: Transistor (NPN)
  • Program Capacity: 64k Steps
  • Inputs: 32

PRODUCT SPECIFICATIONS

Model Name DVP64ES300T
Series DVP-ES3 Series
Program Capacity 64k Steps
Output Method Transistor (NPN)
Execution Speed 25 ns, support AS APIs
Max I/O Points 256 points
DIO / AIO 64 I/O
SD Card Micro SDHC, Max. 32G
Communication 1 Ethernet port, 1 CAN port, 2 x RS485

FILES

Catalog Delta DVP-ES3 Series Catalog

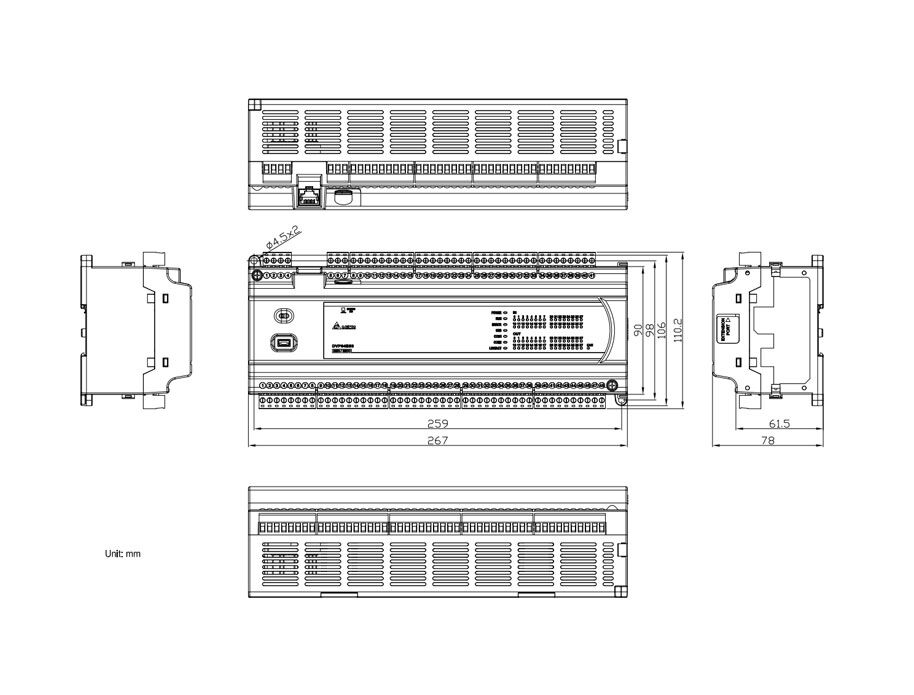

Dimensions Delta DVP64ES300T Dimensions
Instruction Sheet Delta DVP64ES300T Instruction Sheet
2D CAD Delta DVP64ES300T 2D CAD
3D CAD Delta DVP64ES300T 3D CAD  |  (View 3D File)
UL Certificate Delta DVP64ES300T UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta’s third generation DVP PLCs ES3 series employs the AS series PLC’s 32-bit high-speed processor, provides a user-friendly programming interface, 4 high-speed counter inputs, and up to 4-axis control outputs (pulse). The ES3 series supports 8-axis (CANopen) position outputs (ES3 only) and EtherCAT (ES3-TEC only).

Features also include multiple communication ports with robust network functions that enhance integration and connections. Compared with the previous generation, the ES3 series offers a larger capacity, faster execution speed, and enhanced interoperability.

Min. execution time of basic instruction: 25 ns (adopts 32-bit SoC processor)

  • 64k program capacity
  • Max. 256 points for I/O (Max. 8 x AIO extension modules)
  • Built-in 2 x RS-485, AIO (EX3 models only), Micro SD card
  • Supports EtherCAT* (ES3-TEC models only), EtherNet/IP Scanner/Adapter, Modbus TCP, CANopen DS301 (ES3 / EX3 models only)
  • CANopen Delta mode (ES3 / EX3 models only), support Max. 8 Delta servos and motors for right / left side expansion without setup of DS301 data exchange table
  • EtherCAT Delta mode (ES3-TEC models only), support Delta servos and Delta motor drives up to 16 without setup of EtherCAT topology and configuration (Note: ES3-TEC firmware version V1.08.30 or later version is able to support the 3rd EtherCAT slave devices) Max. 8 slaves
  • Built-in dual E thernet ports support dual IP mode
