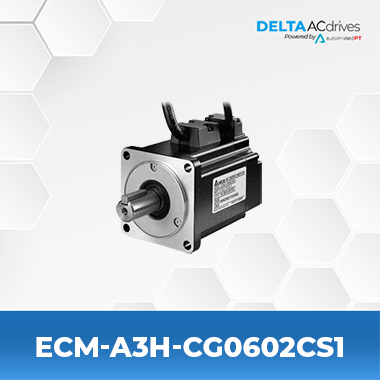

Delta ECM-A3H-CG0602CS1 Servo Motor

  • ECM-A3H High Interia Series
  • Drive Resolution: 24-Bit
  • Rated Power: 200 Watts
  • No Brake
  • Rated Torque: 0.64 (N-m)


SPECIFICATIONS

Model Name ECM-A3H-CG0602CS1
Motor Series ECM-A3H High Interia
Output Power 0.2 kW
Torque 0.64 (N-m)
Voltage 220 VAC
Phase 1 / 3 Phase
Continuous Output Current 1.45 Arms
Instant Max Output Current 5.4 Arms

SERIES DESCRIPTION

ECM-A3 series is Delta’s newest generation of servo system motor.

Features Include

  • Low inertia rated at 3000 r/min
  • High inertial rated at 6000 r/min
  • Multiple options for encoder type, brake, oil seal, and shaft

CATALOG & MANUALS

Catalog Delta ASDA A3 Servo Drive Catalog
Users Manual Delta ASDA A3 Servo Drive Catalog Users Manual
