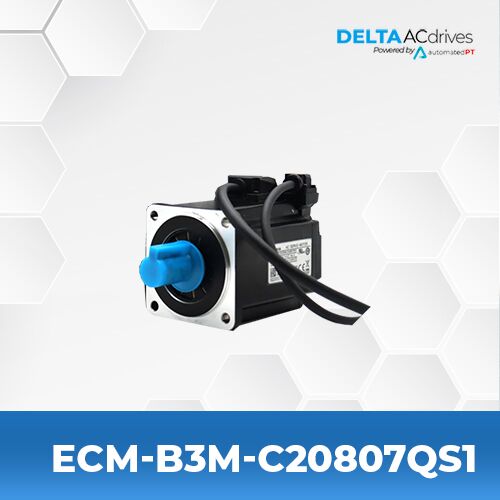

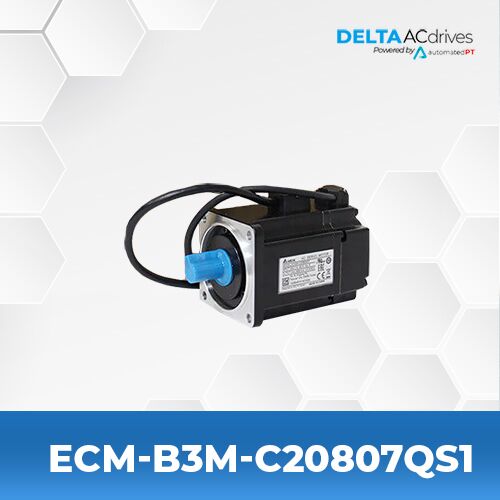

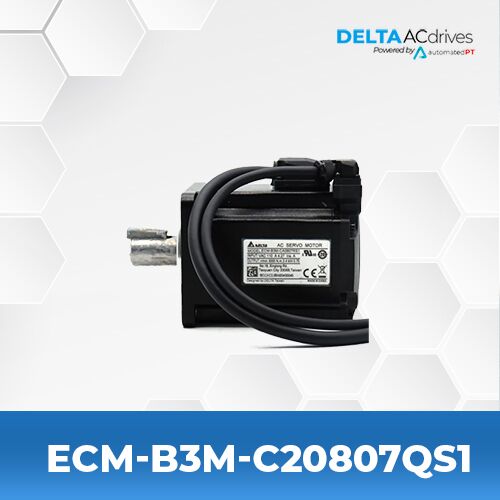

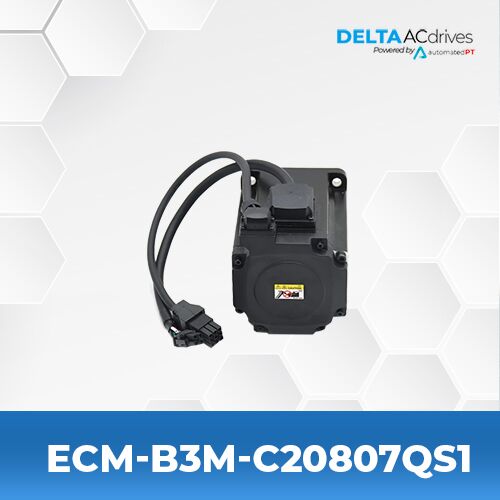

Delta ECM-B3M-C20807QS1 Servo Motor

  • ECM-B3M Medium Inertia Motor Series
  • Drive Resolution: 24-Bit
  • 750 Watts
  • With Brake
  • Rated Torque: 2.4 (N-m)


SPECIFICATIONS

Model Name ECM-B3M-C20807QS1
Motor Series ECM-B3M Medium Inertia Series
Output Power 0.75 kW
Torque 2.4 (N-m)
Voltage 220 VAC
Phase 1 / 3 (PH)
Rated Current 4.27 Arms
Instant Max Output Current 15.8 Arms

SERIES DESCRIPTION

ECM-B3 series is Delta’s newest generation of servo system motor. Compatible with the ASDA-B3 servo drive.

Features Include

  • Low and medium inertia options available
  • Multiple options for encoder type, brake, oil seal, and shaft

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual
