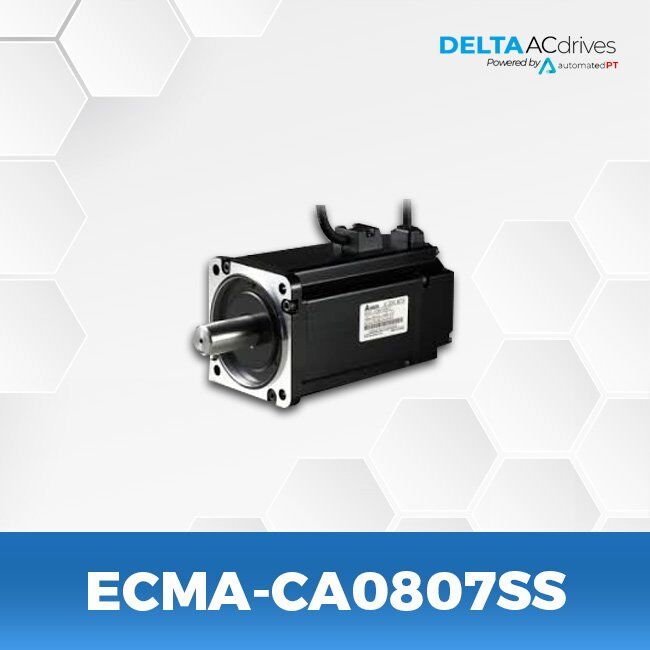

Delta ECMA-CA0807SS ECMA-A2 Servo Motor
$971.55
- Series: ECMA-A2 Servo Motor
- 750 Watts
- 220 Volts Input
- 17 Bit Resolution
- With Brake
SPECIFICATIONS
| Model Name | ECMA-CA0807SS |
| Series | ECMA-A2 Low Inertia Series |
| Output Power | 0.75 KW |
| Torque | 2.39 N-m |
| Voltage | 220 VAC |
| Phase | 1/3 PH |
| Continuous Output Current | 5.10 Arms |
| Instant Max Output Current | 15.30 Arms |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA A2 Servo Drive Catalog | |
| Users Manual | Delta ASDA A2 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
To meet the demanding requirements of motion control applications in industrial automation and satisfy the needs of high-precision positioning control requested by machine designers and system integrators, Delta launched the high-performance motion control ASDA-A2 series servo motors and servo drives in 2009.
Features Include
High Precision Control
ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.
Superlative Vibration Suppression
Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.
Flexible Internal Position Mode (Pr Mode)
ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.
Unique Built-in Electronic Cam (E-CAM)
Up to 720 E-CAM points.
Smooth interpolation between points can be completed automatically to yield a flexible programming.
