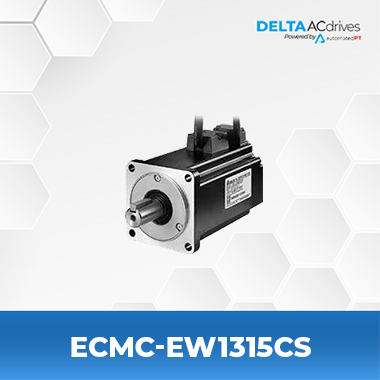

Delta ECMC-EW1315CS Servo Motor

  • ECMC Medium Interia Series
  • Drive Resolution: 24-Bit
  • Rated Power: 1500 Watts
  • No Brake
  • Rated Torque: 7.16 (N-m)


SPECIFICATIONS

Model Name ECMC-EW1315CS
Motor Series ECMC Medium Interia
Output Power 1.5 kW
Torque 7.16 (N-m)
Voltage 220 VAC
Phase 1 / 3 Phase
Continuous Output Current 8.3 Arms
Instant Max Output Current 24.9 Arms

SERIES DESCRIPTION

ECM-A3 series is Delta’s newest generation of servo system motor.

Features Include

  • Low inertia rated at 3000 r/min
  • High inertial rated at 6000 r/min
  • Multiple options for encoder type, brake, oil seal, and shaft

CATALOG & MANUALS

Catalog Delta ASDA A3 Servo Drive Catalog
Users Manual Delta ASDA A3 Servo Drive Catalog Users Manual

COMPATIBLE DRIVES

Accessories

Out of stock

  • Series: A3 Servo Drive
  • 1.5 Kilowatt
  • 220 Volts Input
  • 1/3 Phase (PH)
  • 8.3 Arms Output Current
