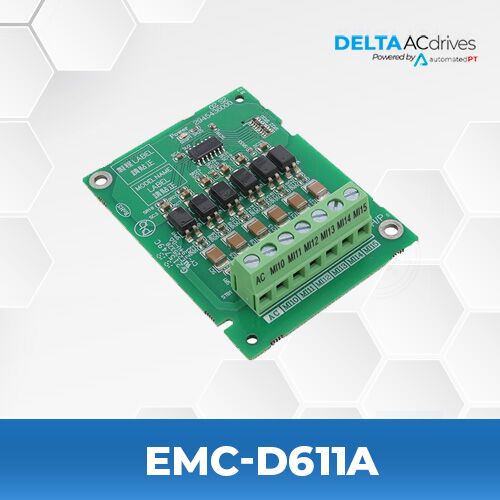

Delta EMC-D611A 6-point digital input (110VAC input voltage) I/O Extension Card
$40.00
- Add on card for CP2000 C2000 CH2000 VFD’s
- 6-point digital input (110VAC input voltage) I/O Extension Card
SPECIFICATIONS
| Terminals | Description |
| AC | AC power common for multi-function input terminal (Neutral) |
| MI10 ~ MI15 | Refer to Pr. 02-26 ~ Pr. 02-31 for multi-function input selection |
| Input voltage: 100 ~ 130VAC ; Input frequency: 57 ~ 63Hz | |
| Input impedance: 27KΩ | |
| Terminal response time: ON: 10ms; OFF: 20ms |
FILES
 |
|
| Catalog | Delta C2000 Series Catalog |
| Users Manual | Delta C2000 Series Users Manual |
| Catalog | Delta CP2000 Catalog |
| Users Manual | Delta CP2000 Users Manual |
| Catalog | Delta CH2000 Series Catalog |
| Users Manual | Delta CH2000 Series Users Manual |
PRODUCT DESCRIPTION
I/O CARD 110VAC 6 Input; Compatible with VFD-C2000, CP2000, CH2000.
► 6-point digital input extension card (110VAC) with a shared AC power common for multi-function input terminals (MI10~MI15).
► supports an input voltage of 100–130VAC at 57–63Hz, with a 27KΩ input impedance and a terminal response time of 10ms (ON) / 20ms (OFF).
