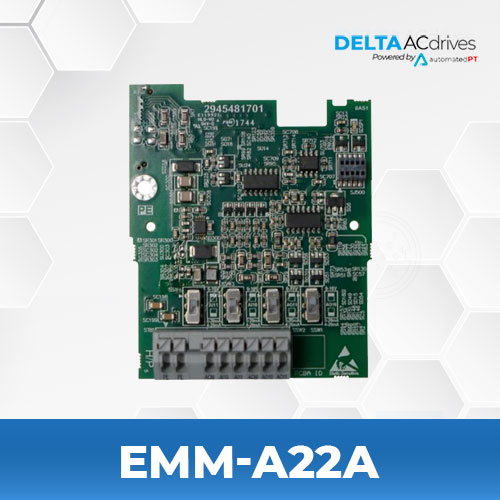

Delta EMM-A22A 2 Sets of Analog Input / 2 Sets of Analog Output I/O Card

  • Add on card for MH300 VFD’s
  • 2 Sets of Analog Input / 2 Sets of Analog Output I/O Card

SPECIFICATIONS

Terminals Description
ACM Common output signal and input signal terminals
AI10, AI11 Refer to Pr. 14-00 ~ Pr. 14-01 to program the multi-function
Two AI ports: switch between J9, J19 for AVI or ACI
AVI10 ~ AVI11: input 0 ~ 10.00 V ± 0.05 V
ACI10 ~ ACI11: input 0 ~ 20.00 mA ± 0.05 mA
AO10, AO11 Refer to Pr. 14-12 ~ Pr. 14-13 to program the multi-function
Two AO ports: switch between J2, J22 for AVO or ACO
AVO10 ~ AVO11: output 0 ~ 10.00 V ± 0.05 V
ACO10 ~ ACO11: output 0 ~ 20.00 mA ± 0.05 mA
PE Earthing terminal to reduce noise; this terminal should also be grounded

FILES

Catalog Delta MH300 Series Catalog
Users Manual Delta MH300 Series Users Manual

PRODUCT DESCRIPTION

ACM serves as the common terminal for input and output signals. AI10 and AI11 are programmable multi-function input ports that can switch between voltage (0–10V) and current (0–20mA) modes. AO10 and AO11 are programmable output ports with similar voltage and current options. The PE terminal ensures proper grounding to reduce noise.
