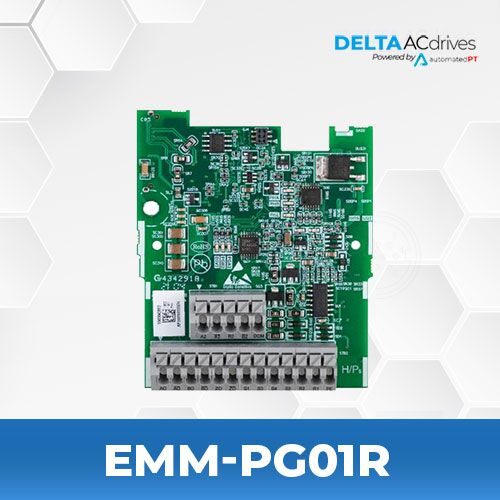

Delta EMM-PG01R Resolver / Encoder Signal Input PG Card

  • Add on card for MH300 VFD’s
  • Resolver / Encoder Signal Input PG Card

SPECIFICATIONS

Terminals Description
PG1 R1- R2 Resolver output power 7 Vrms, 10 kHz
S1, S2, S3, S4 Resolver input signal 3.5 ± 0.175 Vrms, 10 kHz
PG2 A2, / A2
B2,/B2		 Pulse input signal (line driver or open collector)
Open collector input : +5 V ~ +12 V ( Note1 )
1-phase or 2-phase input / Max. input frequency: 300kHz
PG OUT AO, / AO
BO, / BO
ZO, / ZO
SG		 PG card output signals / Division frequency function: 1 ~ 255 times
Max. output voltage for line driver: 5 VDC
Max. output current: 50 mA / Max. output frequency: 300 kHz
SG: The GND of PG card is the same as the host controller or PLC, and a common output signal is
attained
Ground PE Earthing terminal to reduce noise; this terminal should also be grounded

FILES

Catalog Delta MH300 Series Catalog
Users Manual Delta MH300 Series Users Manual

PRODUCT DESCRIPTION

PG1 provides a 7 Vrms, 10 kHz resolver output, while S1–S4 handle resolver input signals at 3.5 ± 0.175 Vrms, 10 kHz. PG2 (A2, B2) manages pulse inputs, supporting line driver or open collector signals up to 300 kHz. PG OUT (AO, BO, ZO) supports signal division (1–255 times) with a max output of 50mA and 300 kHz frequency.
