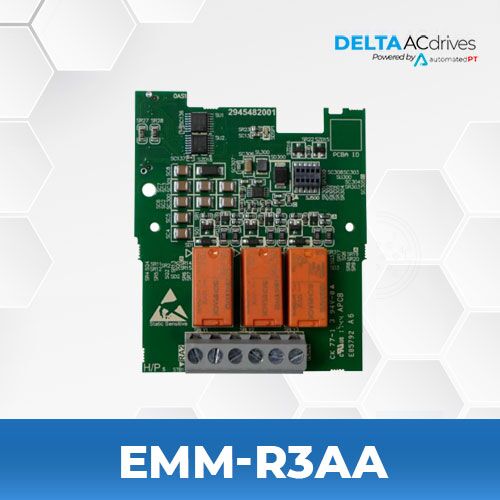

Delta EMM-R3AA 3-point N.O. Output Terminal Relay Card

  • Add on card for MH300 VFD’s
  • 3-point N.O. Output Terminal Relay Card

SPECIFICATIONS

Terminals Description
RA10 ~ RA12
RC10 ~ RC12		 Refer to Pr. 02-36 ~ Pr. 02-38 to program the multi-function
Resistive load: 6 A (N.O.) / 250 VAC
Function: To output each monitor signal, such as drive is in operation, frequency attained or
overload indication

FILES

Catalog Delta MH300 Series Catalog
Users Manual Delta MH300 Series Users Manual

PRODUCT DESCRIPTION

RA10 to RA12 and RC10 to RC12 are programmable multi-function output terminals used for monitoring signals like drive operation, frequency attainment, or overload indication. They support resistive loads up to 6A at 250VAC.
