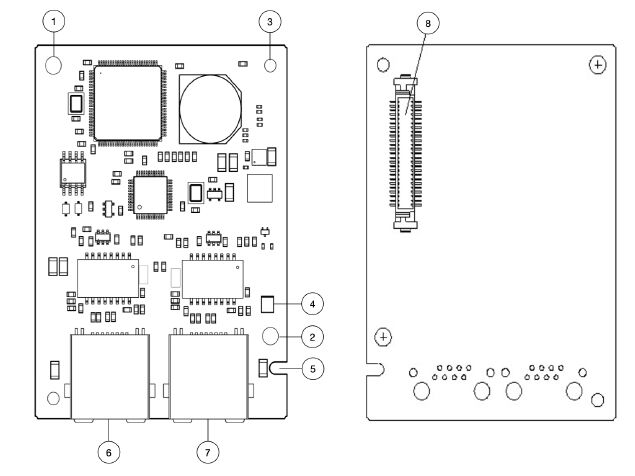

Delta eZVFD-CC BACnet Communication Card

Delta eZVFD-CC BACnet Communication Card - Image 2

Delta eZVFD-CC BACnet Communication Card

Add on card for CP2000 VFD’s
BACnet Communication Card

Description

SPECIFICATIONS

Interface	RJ45
Number of ports	2 ports
Daisy chaining	Up to 30 devices (daisy chain is discontinued if drive is not powered)
Transmission method	IEEE 802.3
Transmission cable	10/100 BaseT CAT5E/CAT6
Maximum length	100m (port-to-port)
Transmission speed	10/100 Mbps auto-negotiate
Network protocol	BACnet/IP or BACnet/Ethernet

FILES


Catalog	Delta CP2000 Catalog
Users Manual	Delta CP2000 Users Manual

PRODUCT DESCRIPTION

The eZVFD-CC Integration Module provides BACnet/IP and BACnet over Ethernet communication to BACnet compliant devices. When used with a Delta Controls system, you can use the module’s GCL+programs and Delta Controls internal control loops to directly control pumps and fan motors. Quickly configure and save drive parameters in enteliWEB and load the saved configuration onto other CP2000 AC motor drives over the BACnet network.

Features include :

► Native BACnet firmware
► BACnet/IP, BACnet over Ethernet communication protocols
► Fully programmable in GCL+ (Delta Controls General Control Language)
► Dual port ethernet to support daisy-chaining multiple CP2000 devices
► Monitor and utilize CP2000 AC motor drive I/O terminals as BACnet I/O
► Set up and configure using enteliWEB. Use enteliWEB to read, write, save and load CP2000 AC motor drive parameters.
