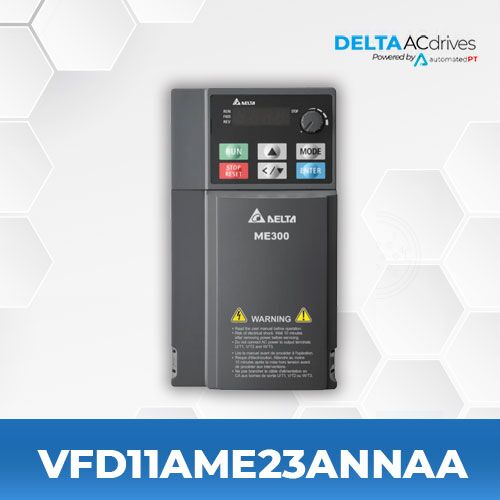

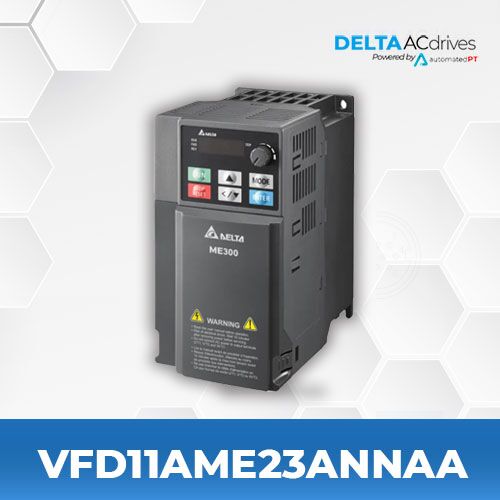

Delta VFD11AME23ANNAA ME300 Series Drive
$324.45
- Series: ME300
- 230 V
- 3 Phase
- 3 HP
- 2.2 KW
- Safe Torque Off: No
- EMC Filter: No
- Heavy Duty Amps: 11 A
- Normal Duty Amps: 12.5 A
PRODUCT SPECIFICATIONS
| Model Name | VFD11AME23ANNAA |
| Series | ME300 |
| Input Voltage – Phase | 230 V – 3 Phase |
| Motor Power Range | 3 HP – 2.2 KW |
| Frequency | 0 – 599 Hz |
| Frame Size | C1 |
| IP Rating | IP 20 |
| EMC Filter | No |
| Safety Torque Off – STO | No |
| Normal Duty* Amps | 12.5 A |
| Heavy Duty** Amps : | 11 A |
| Weight | 2.205 Lbs |

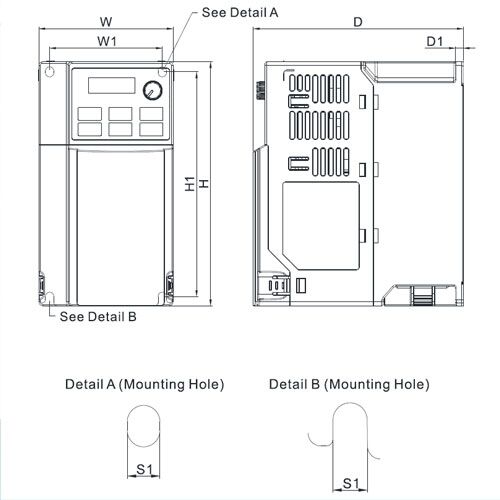

| Dimensions | 5.35 (in) x 3.43 (in) x 6.18 (in) |
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
FILES
 | |
| Catalog | Delta ME300 Series Catalog |
| Users Manual | Delta ME300 Series Users Manual |
| Dimensions | Delta VFD11AME23ANNAA Dimensions |
| 2D-CAD File | Delta VFD11AME23ANNAA 2D-CAD |
| 3D-CAD File | Delta VFD11AME23ANNAA 3D-CAD |
| Energy Efficiency Report | Delta ME300 Energy Efficiency Report |
| UL Certification | Delta ME300 UL Certification |
SERIES DESCRIPTION
The ME300 series is Delta’s compact economy vector control drive that inherits Delta’s superior drive technology with 60% volume reduction.
Outstanding Drive Performance
Supports induction and permanent Motors | High Starting Torque | Enhanced Braking Capability | Deceleration Energy Backup (DEB) | Enhanced Braking Capability
Strong System Support
Pump Control | Multi-pump Control | Pulse Input | Built-in ModbuS Communication | High Overload Capability | Built-in Brake Chopper | Common DC Bus
Stable, Safe and Reliable
Safe Torque Off | PCB Coating | NEMA 1 Kit (Optional)
Wide Range of Applications
Single / Multi-pumps | Conveyors | Fans | Woodworking Machines | Packaging Machines | Textile Machines |
