PRODUCT SPECIFICATIONS

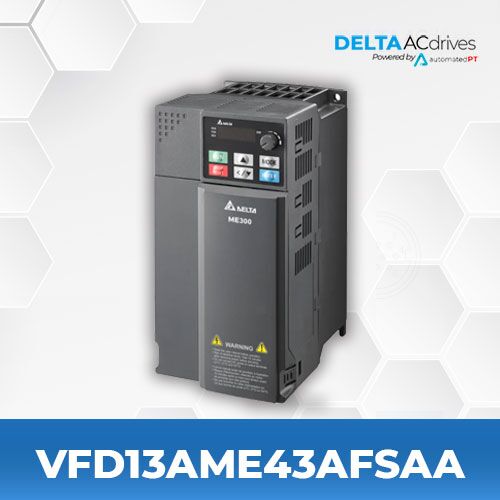

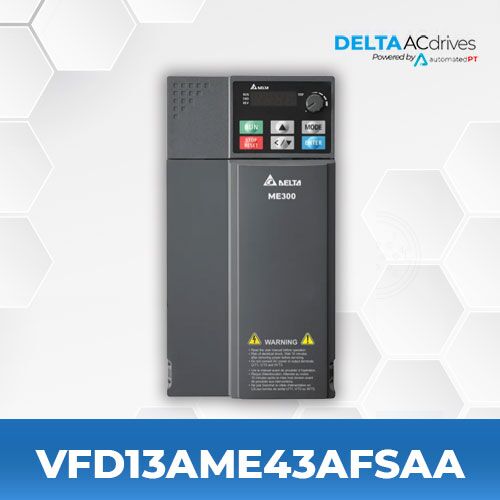

Model Name	VFD13AME43AFSAA
Series	ME300
Input Voltage – Phase	460 V – 3 Phase
Motor Power Range	7.5 HP – 5.5 KW
Frequency	0 – 599 Hz
Frame Size	D2
IP Rating	IP 20
EMC Filter	Yes
Safety Torque Off – STO	Yes
*Normal Duty Amps**	15.7 A
Heavy Duty Amps :**	13 A
Weight	4.409 Lbs

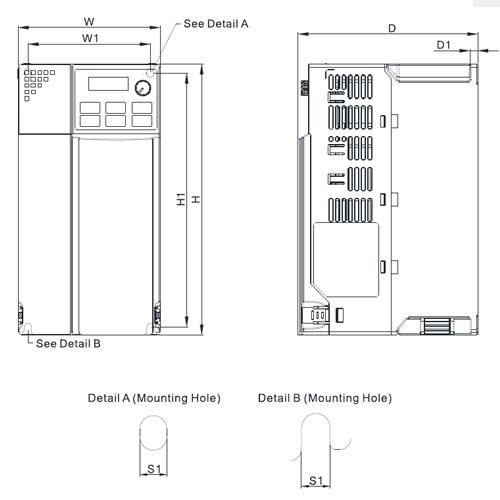

Dimensions	6.73 (in) x 4.29 (in) x 8.15 (in)

* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds

FILES


Catalog	Delta ME300 Series Catalog
Users Manual	Delta ME300 Series Users Manual
Dimensions	Delta VFD13AME43AFSAA Dimensions
2D-CAD File	Delta VFD13AME43AFSAA 2D-CAD
3D-CAD File	Delta VFD13AME43AFSAA 3D-CAD
Energy Efficiency Report	Delta ME300 Energy Efficiency Report
UL Certification	Delta ME300 UL Certification

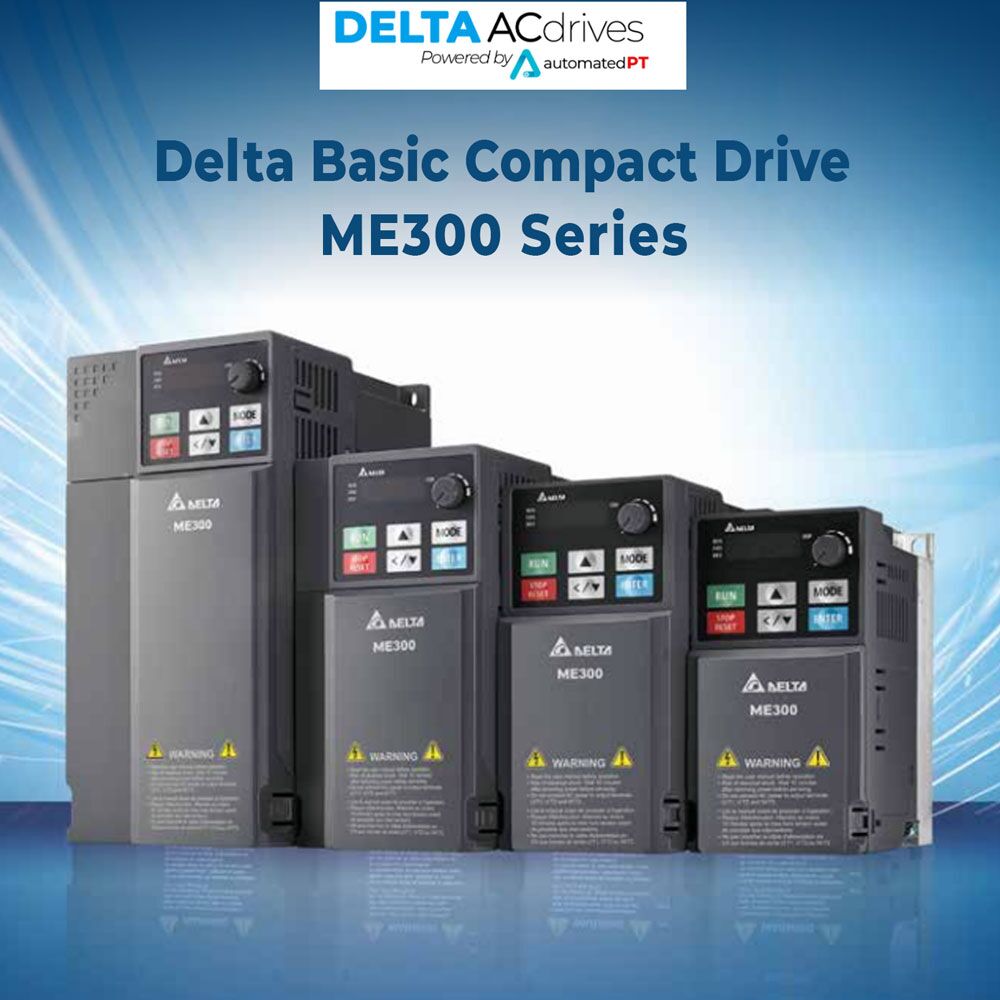

SERIES DESCRIPTION
The ME300 series is Delta’s compact economy vector control drive that inherits Delta’s superior drive technology with 60% volume reduction.

Outstanding Drive Performance
Supports induction and permanent Motors | High Starting Torque | Enhanced Braking Capability | Deceleration Energy Backup (DEB) | Enhanced Braking Capability

Stable, Safe and Reliable
Safe Torque Off | PCB Coating | NEMA 1 Kit (Optional)
