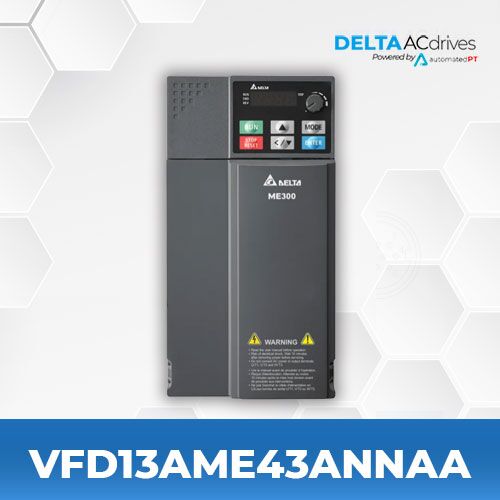

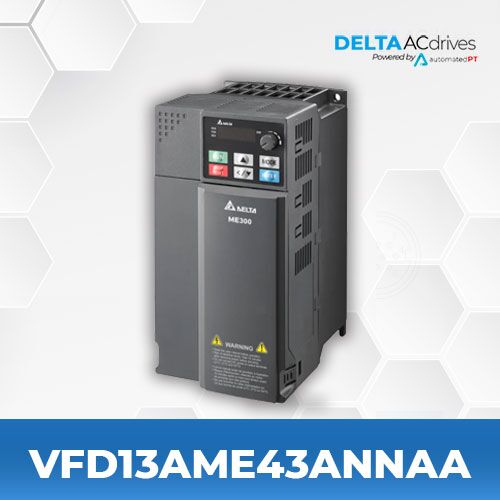

Delta VFD13AME43ANNAA ME300 Series Drive
$466.20
- Series: ME300
- 460 V
- 3 Phase
- 7.5 HP
- 5.5 KW
- Safe Torque Off: No
- EMC Filter: No
- Heavy Duty Amps: 13 A
- Normal Duty Amps: 15.7 A
PRODUCT SPECIFICATIONS
| Model Name | VFD13AME43ANNAA |
| Series | ME300 |
| Input Voltage – Phase | 460 V – 3 Phase |
| Motor Power Range | 7.5 HP – 5.5 KW |
| Frequency | 0 – 599 Hz |
| Frame Size | D1 |
| IP Rating | IP 20 |
| EMC Filter | No |
| Safety Torque Off – STO | No |
| Normal Duty* Amps | 15.7 A |
| Heavy Duty** Amps : | 13 A |
| Weight | 5.952 Lbs |

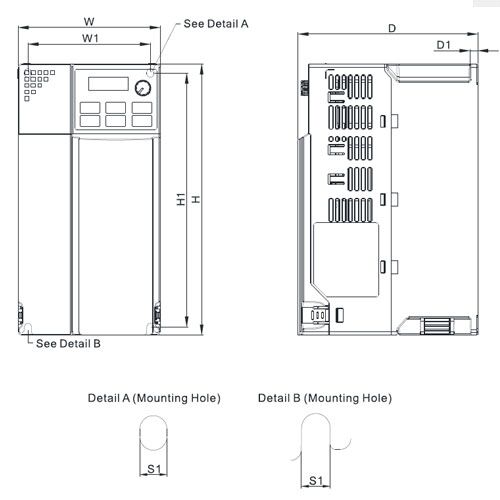

| Dimensions | 5.43 (in) x 4.29 (in) x 8.15 (in) |
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
FILES
 |
|
| Catalog | Delta ME300 Series Catalog |
| Users Manual | Delta ME300 Series Users Manual |
| Dimensions | Delta VFD13AME43ANNAA Dimensions |
| 2D-CAD File | Delta VFD13AME43ANNAA 2D-CAD |
| 3D-CAD File | Delta VFD13AME43ANNAA 3D-CAD |
| Energy Efficiency Report | Delta ME300 Energy Efficiency Report |
| UL Certification | Delta ME300 UL Certification |
SERIES DESCRIPTION
The ME300 series is Delta’s compact economy vector control drive that inherits Delta’s superior drive technology with 60% volume reduction.
Outstanding Drive Performance
Supports induction and permanent Motors | High Starting Torque | Enhanced Braking Capability | Deceleration Energy Backup (DEB) | Enhanced Braking Capability
Strong System Support
Pump Control | Multi-pump Control | Pulse Input | Built-in ModbuS Communication | High Overload Capability | Built-in Brake Chopper | Common DC Bus
Stable, Safe and Reliable
Safe Torque Off | PCB Coating | NEMA 1 Kit (Optional)
Wide Range of Applications
Single / Multi-pumps | Conveyors | Fans | Woodworking Machines | Packaging Machines | Textile Machines |
