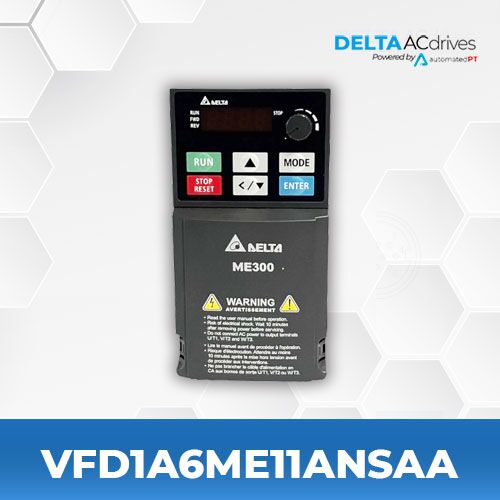

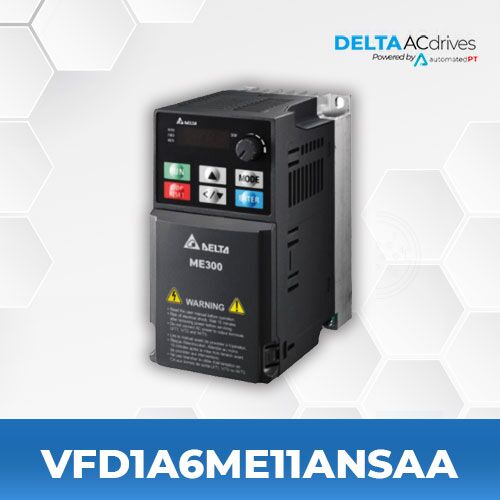

Delta VFD1A6ME11ANSAA ME300 Series Drive
- Series: ME300
- 115 V
- 1 Phase
- 0.25 HP
- 0.2 KW
- Safe Torque Off: Yes
- EMC Filter: No
- Heavy Duty Amps: 1.6 A
- Normal Duty Amps: 1.8 A
PRODUCT SPECIFICATIONS
| Model Name | VFD1A6ME11ANSAA |
| Series | ME300 |
| Input Voltage – Phase | 115 V – 1 Phase |
| Motor Power Range | 0.25 HP – 0.2 KW |
| Frequency | 0 – 599 Hz |
| Frame Size | A1 |
| IP Rating | IP 20 |
| EMC Filter | No |
| Safety Torque Off – STO | Yes |
| Normal Duty* Amps | 1.8 A |
| Heavy Duty** Amps : | 1.6 A |
| Weight | 0.882 Lbs |

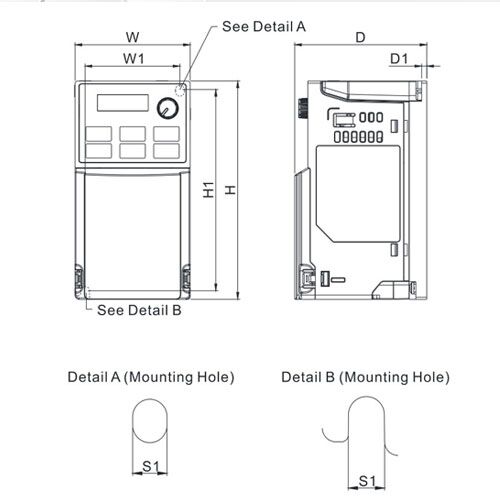

| Dimensions | 3.07 (in) x 2.68 (in) x 5.04 (in) |
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
FILES
 |
|
| Catalog | Delta ME300 Series Catalog |
| Users Manual | Delta ME300 Series Users Manual |
| Dimensions | Delta VFD1A6ME11ANSAA Dimensions |
| 2D-CAD File | Delta VFD1A6ME11ANSAA 2D-CAD |
| 3D-CAD File | Delta VFD1A6ME11ANSAA 3D-CAD |
| Energy Efficiency Report | Delta ME300 Energy Efficiency Report |
| UL Certification | Delta ME300 UL Certification |
SERIES DESCRIPTION
The ME300 series is Delta’s compact economy vector control drive that inherits Delta’s superior drive technology with 60% volume reduction.
Outstanding Drive Performance
Supports induction and permanent Motors | High Starting Torque | Enhanced Braking Capability | Deceleration Energy Backup (DEB) | Enhanced Braking Capability
Strong System Support
Pump Control | Multi-pump Control | Pulse Input | Built-in ModbuS Communication | High Overload Capability | Built-in Brake Chopper | Common DC Bus
Stable, Safe and Reliable
Safe Torque Off | PCB Coating | NEMA 1 Kit (Optional)
Wide Range of Applications
Single / Multi-pumps | Conveyors | Fans | Woodworking Machines | Packaging Machines | Textile Machines |
