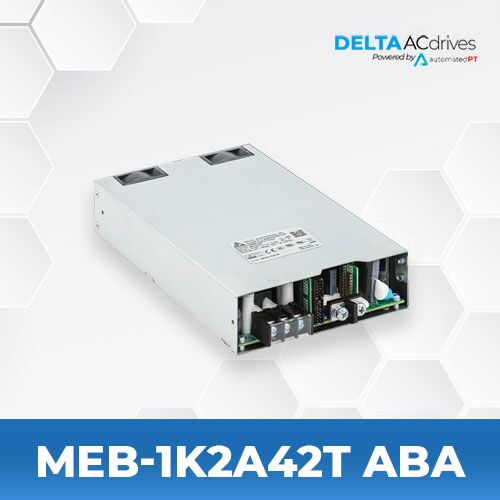

Delta MEB-1K2A42T ABA MEB Series

  • MEB Series
  • Phase: 1
  • Output Voltage: 42 V
  • Output Power: 1200 W

PRODUCT SPECIFICATIONS

Model Name MEB-1K2A42T ABA
Phase 1
Output Voltage Range 42 V
Output Power 1200 W
Dimensions (H x W x D) 8.03 in x 5 in x 1.59 in
Unit Weight 3.31 lbs

FILES

Catalog Delta Panel Mount Power Supply Catalog

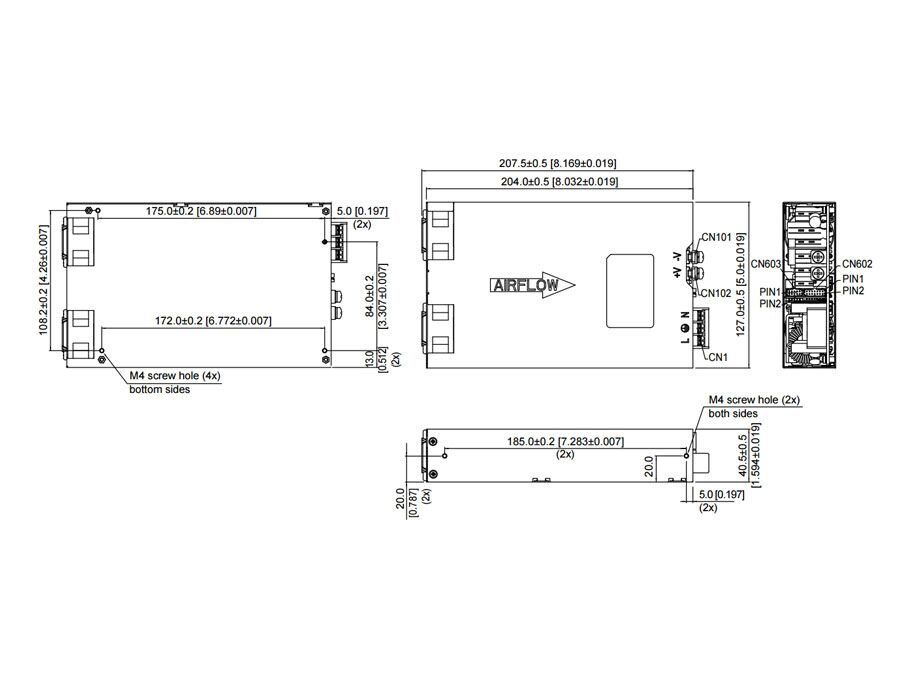

Dimensions Delta MEB-1K2A42T ABA Dimensions
Data Sheet Delta Delta-MEB-1K2A42T ABA Datasheet
2D CAD Delta MEB-1K2A42T ABA 2D CAD
3D CAD Delta MEB-1K2A42T ABA 3D CAD  |  (View 3D File)
UL Certificate Delta MEB-1K2A42T ABA Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta range of panel mount power supplies for different needs. The PMR Series offers High power output with built-in fan cooling with a Power Range of 500-1,200 W.

Features
• Up to 1200 W in 5″ × 8.03″ × 1.59″ package
• Full power from 90 VAC to 264 VAC, up to 50°C ambient
• 2 × MOPP isolation, Suitable for type BF medical products
• Current sharing and 5 V / 2 A standby output
• Class B Conducted and Radiated EMI
• PMBus Ver 1.3 supported
• Intelligent fan speed control
