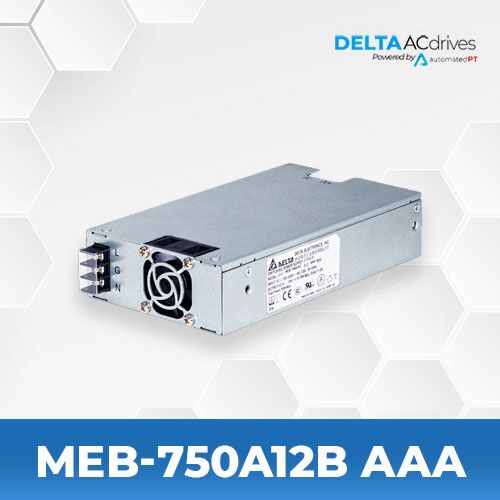

Delta MEB-750A12B AAA MEB Series

  • MEB Series
  • Phase: 1
  • Output Voltage: 12 V
  • Output Power: 750 W

PRODUCT SPECIFICATIONS

Model Name MEB-750A12B AAA
Phase 1
Output Voltage Range 12 V
Output Power 750 W
Dimensions (H x W x D) 7 in x 4 in x 1.57 in
Unit Weight 2.43 lbs

FILES

Catalog Delta Panel Mount Power Supply Catalog

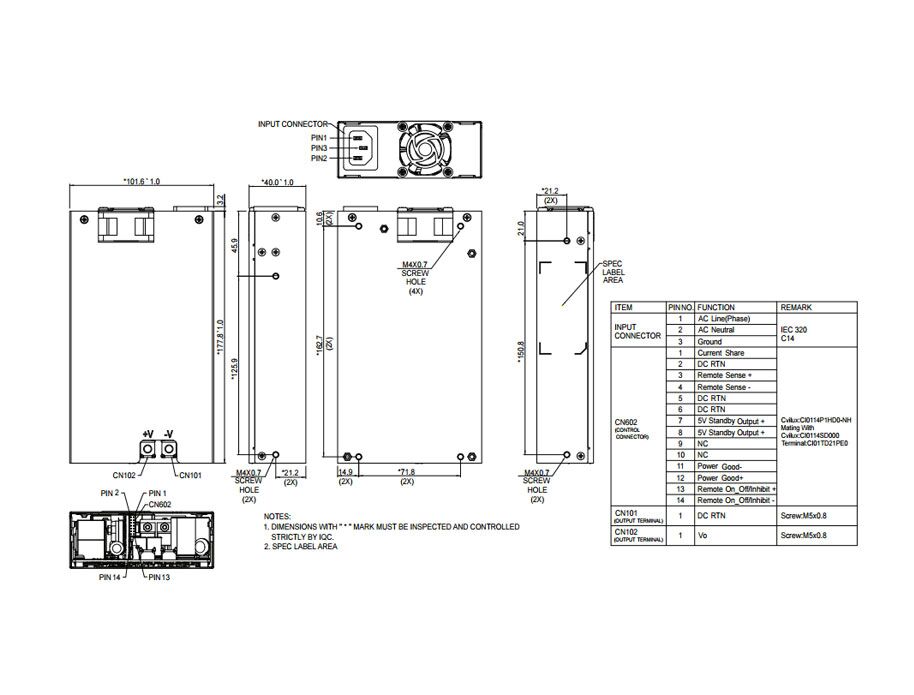

Dimensions Delta MEB-750A12B AAA Dimensions
Data Sheet Delta MEB-750A12B AAA Datasheet
2D CAD Delta MEB-750A12B AAA 2D CAD
3D CAD Delta MEB-750A12B AAA 3D CAD
UL Certificate Delta MEB-750A12B AAA Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta range of panel mount power supplies for different needs. The PMR Series offers High power output with built-in fan cooling with a Power Range of 500-1,200 W.

Features
• High Power Density
• 2 × MOPP Isolation
• Safety Approvals to IEC 60601-1 Ed. 2 & 3.1
• Suitable for Type BF Medical Products
• Full Power up to 50°C Ambient
• Class B Conducted and Radiated EMI
