PRODUCT SPECIFICATIONS

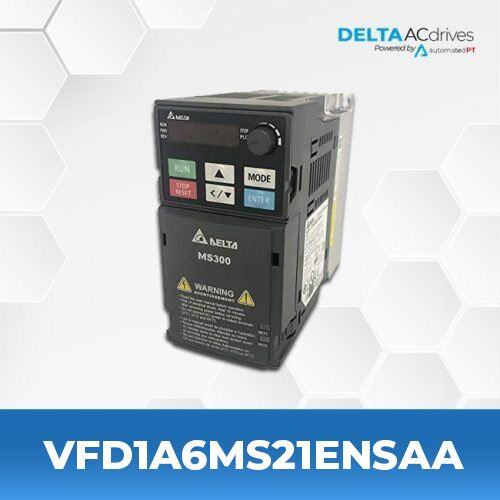

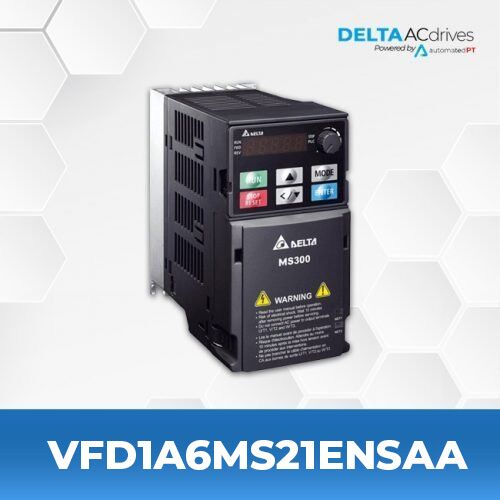

Model Name	VFD1A6MS21ENSAA
Series	MS-300 Series
Input Voltage – Phase	230 V – 1 Phase
Motor Power Range	0.25 HP – 0.2 KW
Frequency	0 – 599 Hz
Frame Size	A1
IP Level	IP 40
EMC Filter	Optional EMC Filter
*Normal Duty Amps**	1.8 A
Heavy Duty Amps :**	1.6 A
Weight	1.5 Lbs
Dimensions	2.68 (in) x 5.04 (in) x 3.8(in)

* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds

FILES


Catalog	Delta MS-300 Series Catalog
Users Manual	Delta MS 300 Series Users Manual
Dimensions	Delta VFD1A6MS21ENSAA Dimensions
2D-CAD File	Delta VFD1A6MS21ENSAA 2D CAD
3D-CAD File	Delta VFD1A6MS21ENSAA 3D CAD
Energy Efficiency Report	Delta VFD1A6MS21ENSAA Energy Efficiency Report
UL Certification	Delta VFD1A6MS21ENSAA UL Certification.pdf

SOFTWARE

SERIES DESCRIPTION

The MS300 is Delta’s compact vector control drive line.

Optimized Space Utilization
Compact Design | Side-by-Side Installation

Communication Options

Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation

Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)
