Delta VFD25AMS43AFSAA VFD-MS300 Series Drive

$979.00

  • Series: VFD-MS300
  • 15 HP
  • 11 KW
  • 460 V
  • 25 A
  • Input: 3 PH

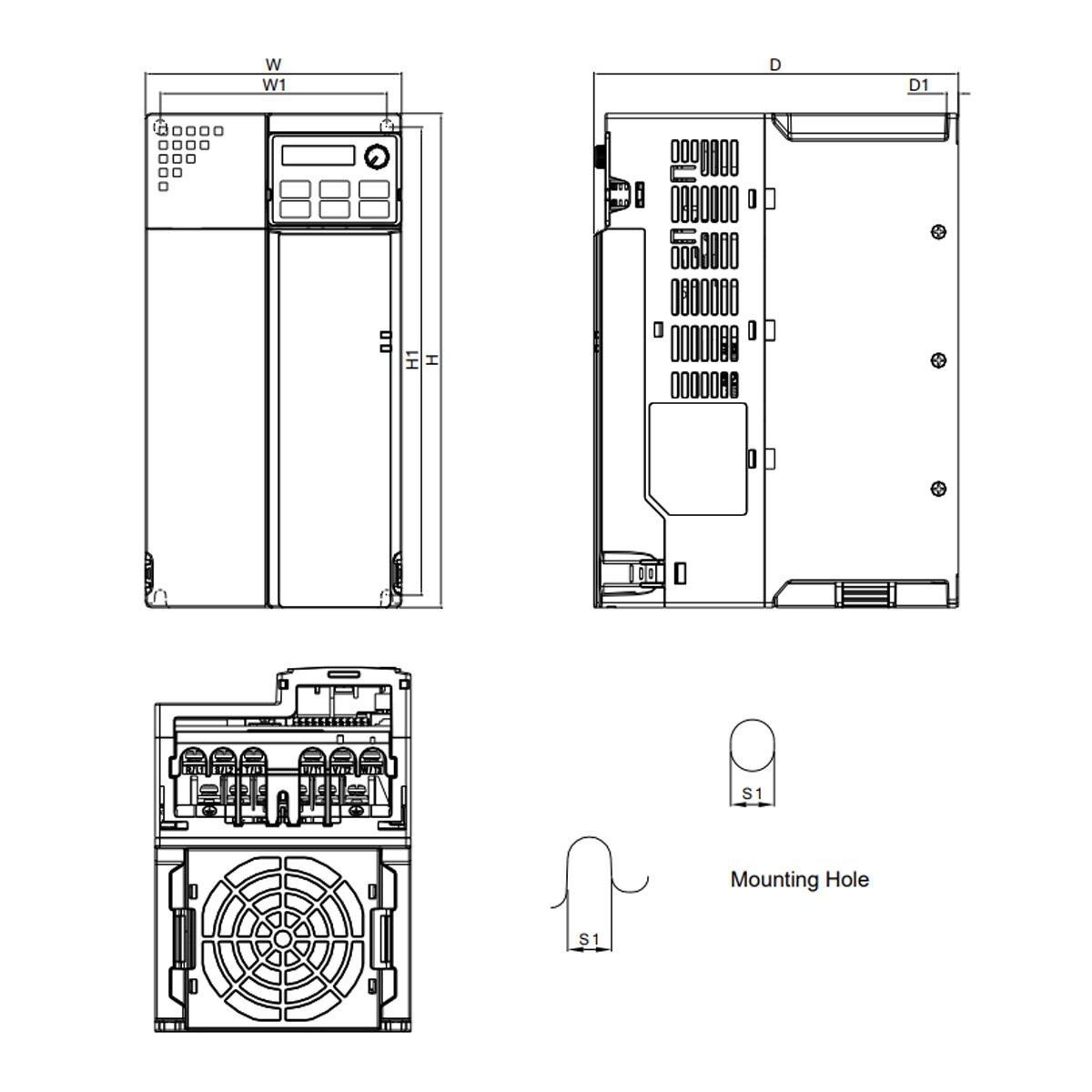

Standard Models (0-599 Hz) With EMC Filter Part Number: VFD25AMS43AFSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 460 Volts AC HP: 15 HP Amps (HD): 25A Amps (ND): 28A Input Phase : 3PH Operator Controls : Sold Seperately, See Accessories Brake Type : DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size : E2 Height: 9.84 Inches Width: 5.12 Inches Depth: 8.62 Inches Net Weight: 17 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system ,all included in the MS300 series with drive size reduced up to 40%. Delta VFD MS300 Micro Drive Accessories

Item #
CMM-COP01 MS300 CANopen Communication Card
CMM-PD01 MS/MH300 Profibus DP Communication Card
CMM-DN01 MS/MH300 DeviceNet Communication Card
CMM-MOD01 MS/MH300 Modbus TCP Communication Card
CMM-EIP01 MS/MH300 EtherNet/IP Communication Card
MKM-CBE NEMA 1 Kit, VFD-MS/MH300, Frame E1 and E2
BR1K5W043 Resistor 1500W 43 Ohm

CATALOG & MANUALS


Catalog Delta VFD-MS300 Drive Catalog
Users Manual Delta VFD-MS300 User Manual
