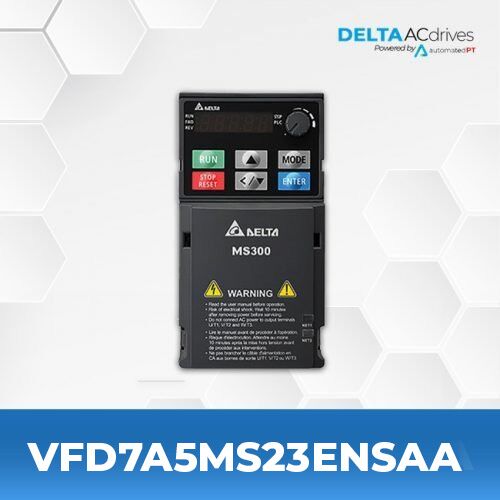

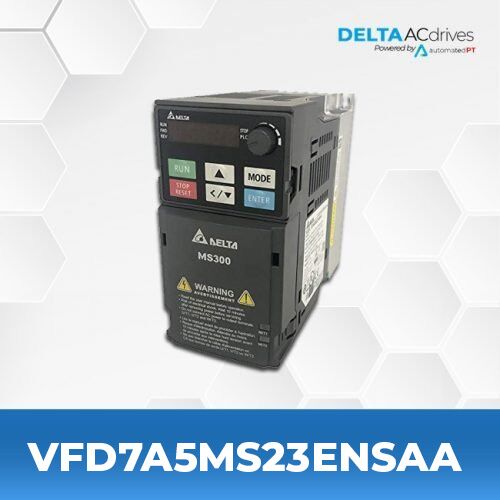

Delta VFD7A5MS23ENSAA MS300 Series Drive

  • Series: MS-300
  • 230 V
  • 3 Phase
  • 2 HP
  • 1.5 KW
  • 0 – 599 Hz
  • IP 40
  • Optional EMC Filter
  • Heavy Duty Output: 7.5 A
  • Normal Duty Output: 8 A


PRODUCT SPECIFICATIONS

Model Name VFD7A5MS23ENSAA
Series MS-300 Series
Input Voltage – Phase 230 V – 3 Phase
Motor Power Range  2 HP – 1.5 KW
Frequency 0 – 599 Hz
Frame Size B1
IP Level IP 40
EMC Filter Optional EMC Filter
Normal Duty* Amps 8 A
Heavy Duty** Amps : 7.5 A
Weight 2.4 Lbs
Dimensions 2.83 (in) x 5.6 (in) x 5.7(in)

* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The MS300 is Delta’s compact vector control drive line.

Optimized Space Utilization
Compact Design | Side-by-Side Installation

Communication Options

Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation

Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)

Strong System Support
Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control

Wide Range of Applications
Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines
